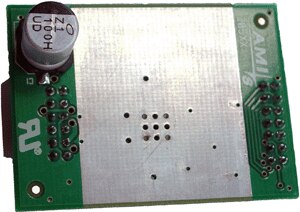

AM305321R1DBGEVB: Daughter Board Stepper Driver NQ Evaluation Board

評価ボード説明
The AM305321R1DBGEVB is a form factor daughter board for driving bipolar stepper motors. The daughter board can be interfaced via I/O pins and the SPI bus to an external microcontroller. In conjunction with the evaluation kit AMIS305XXGEVK it forms a complete solution turning high level commands from a CAN node in well defined motions. The design incorporates the lowest bill of materials, small board size and perfect matched thermal resistance allowing to drive 1.6A at elevated ambient temperature or even 3.2A under certain conditions.

Note: This board must be used with the AMIS305XXGEVK Industrial Stepper Motor Driver Kit.
特長およびアプリケーション

特長

  • Low bill of materials
  • Small form factor (40mm x 32mm (20mm x 15mm active area))
  • Plug and Play in combination with EVK-3052x
  • Microstepping (full step, 1/2 (compensated and uncompensated), 1/4, 1/8, 1/16, 1/32)
  • Nominal current of 1.6A (3.2A under certain conditions)
  • Fully integrated current sensing
  • 6V-30V supply voltage
  • On chip 5V/50mA regulator
  • (Watchdog) reset output
  • Compatible with 5V and 3.3V microcontrollers
  • Next step and motion direction input
  • Speed and load-angle output
  • Diagnostics information
  • Thermal warning and thermal shutdown
  • Programmable PWM frequency and slope control
評価ボード情報
評価ボード ステータス Compliance 簡単な説明 使用パーツ アクション
AM305321R1DBGEVB Active
Daughter Board Stepper Driver NQ Evaluation Board AMIS30532C5321GAMIS30532C5321RG
Avnet (2014-04-23) : 2
Digi-Key (2014-04-23) : 3
技術文書
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: BOM AM305321R1DBGEVB Bill of Materials ROHS Compliant AM305321R1DBGEVB_BOM_ROHS.PDF - 134.0 KB  0
Eval Board: Gerber AM305321R1DBGEVB Gerber Layout Files (Zip Format) AM305321R1DBGEVB_GERBER.ZIP - 60.0 KB  0
Eval Board: Schematic AM305321R1DBGEVB Schematic AM305321R1DBGEVB_SCHEMATIC.PDF - 219.0 KB  0
