ADT7461A: Temperature Sensor with Series Resistance Cancellation

Overview
Specifications
Packages
Applications
Datasheet: Temperature Monitor with Series Resistance Cancellation
Rev. 8 (294.0kB)
Product Overview
»信頼性データを表示する
»材料組成を表示
»製品変更通知 (8)

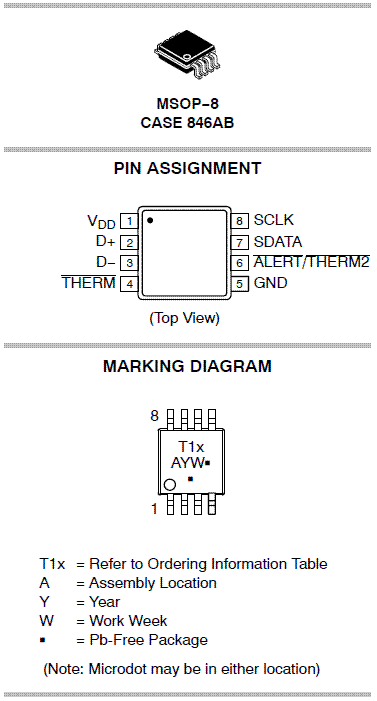

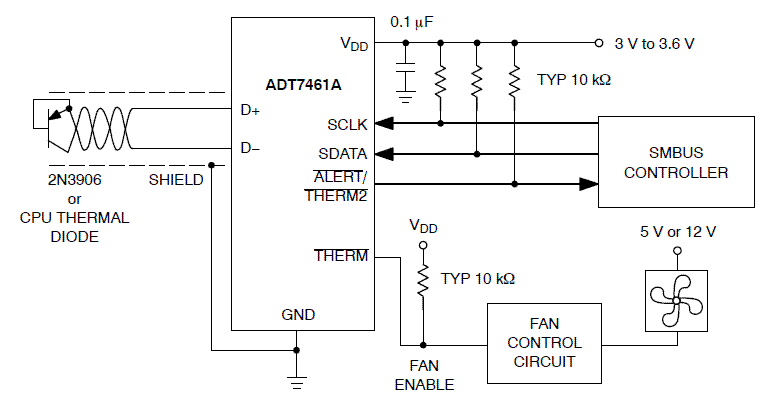

The ADT7461A is a dual-channel digital thermometer and undertemperature/overtemperature alarm, intended for use in PCs and thermal management systems. It is pin- and register-compatible with the ADM1032 and the ADT7461. A feature of the ADT7461A is series resistance cancellation, where up to 1.5 kΩ (typical) of resistance in series with the temperature monitoring diode can be automatically cancelled from the temperature result, allowing noise filtering.
特長

  • On-chip and remote temperature sensor
  • 0.25°C resolution/1°C accuracy on remote channel
  • 1°C resolution/1°C accuracy on local channel
  • Automatically cancels up to 1.5 kΩ (typical) of resistance in series with remote diode to allow noise filtering
  • Extended, switchable temperature measurement range 0°C to +127°C (default) or 64°C to +191°C
  • Pin- and register-compatible with ADM1032 and ADT7461
  • 2-wire SMBus serial interface with SMBus alert support
  • Programmable over/undertemperature limits
  • Offset registers for system calibration
  • Up to two overtemperature fail-safe THERM outputs
  • 240 µA operating current, 5 µA standby current
  • DSL Line Cards
アプリケーション   最終製品
  • Thermal Management

  • Notebook and Desktop Computers
  • Game Consoles
  • RFID Readers
  • Graphics Cards
  • LCD TVs
  • Dishwashers
供給状況 & サンプル
製品
状態
Compliance
内容
外形
MSL*
梱包形態
予算 価格/Unit
タイプ
Case Outline
タイプ
数量
ADT7461AARMZ Last Shipments
Pb-free
Halide free
Temperature Sensor with Series Resistance Cancellation Micro8™ 846A-02 1 Tube 50
ADT7461AARMZ-2RL Last Shipments
Pb-free
Halide free
Temperature Sensor with Series Resistance Cancellation Micro8™ 846A-02 1 Tape and Reel 3000
ADT7461AARMZ-R Active
Pb-free
Halide free
Temperature Sensor with Series Resistance Cancellation Micro8™ 846A-02 1 Tape and Reel 3000 $2.6533
ADT7461AARMZ-RL7 Last Shipments
Pb-free
Halide free
Temperature Sensor with Series Resistance Cancellation Micro8™ 846A-02 1 Tape and Reel 1000
ADT7461AARMZ2RL7 Last Shipments
Pb-free
Temperature Sensor with Series Resistance Cancellation Micro8™ 846A-02 1 Tape and Reel 1000
面実装デバイスためのモイスチャー・レベル(260°Cリフローでの鉛フリー測定、235°Cリフローでの鉛フリー以外測定)
マーケットリードタイム(週) : Contact Factory
マーケットリードタイム(週) : Contact Factory
Chip1Stop   (2017-03-22) : >1K
マーケットリードタイム(週) : 4 to 8
Mouser   (2017-03-22) : >1K
マーケットリードタイム(週) : Contact Factory
マーケットリードタイム(週) : Contact Factory
PandS   (2017-03-22) : <1K
Datasheet: Temperature Monitor with Series Resistance Cancellation
Rev. 8 (294.0kB)
Product Overview
»信頼性データを表示する
»材料組成を表示
»製品変更通知 (8)

Product Compliance Status Description Sensor Type Data Transmission Standard ICC Max (mA) VCC Min (V) VCC Max (V) T Min (°C) T Max (°C) Temperature Error (°C) Package Type
Pb-free
Halide free
 Active     Temperature Sensor with Series Resistance Cancellation
Local & Remote
SMBus
0.35
3
3.6
-40
125
±1
Micro8™
