AMIS-30660: CAN Transceiver, High Speed

Overview
Specifications
Packages
Applications
Datasheet: High Speed CAN Transceiver
Rev. 10 (135.0kB)
»材料組成を表示
»製品変更通知 (3)
Product Overview
製品説明

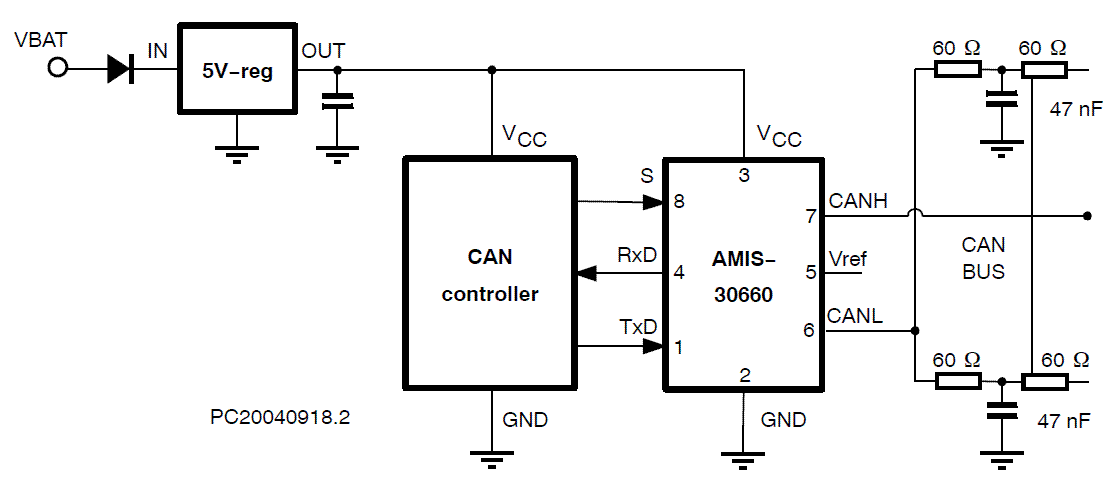

The AMIS-30660 CAN transceiver is the interface between a controller area network (CAN) protocol controller and the physical bus and may be used in both 12 V and 24 V systems. The transceiver provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Due to the wide common-mode voltage range of the receiver inputs, the AMIS-30660 is able to reach outstanding levels of electromagnetic susceptibility (EMS). Similarly, extremely low electromagnetic emission (EME) is achieved by the excellent matching of the output signals.
特長   利点

  • Transmit data (TxD) dominant time-out function

  • Prevents bus problem in case of node failure
  • Fully compatible with the ISO 11898-2 standard

  • Certified Authentication on CAN Transceiver Conformance (d1.1)

  • High speed (up to 1Mbit/s)

  • Ideally suited for 12V and 24V industrial and automotive applications

  • Low EME common-mode choke is no longer required

  • Differential receiver with wide common-mode range (+/- 35V) for high EMS

  • No disturbance of the bus lines with an un-powered node

  • Thermal protection

  • Bus pins protected against transients in an automotive environment

  • Silent mode in which the transmitter is disabled

  • Short circuit proof to supply voltage and ground

アプリケーション   最終製品
  • ECU
  • Gateway
  • Body Controller

  • Automobiles
  • Industrial Equipment
技術資料&デザイン・リソース
デザインおよび開発ツール (1) シミュレーション・モデル (1)
チュートリアル (1) データシート (1)
アプリケーション ノート (10) パッケージ図 (1)
供給状況およびサンプル
製品
ステータス
Compliance
内容
パッケージ
MSL*
コンテナ
予算価格/ユニット
タイプ
ケース形状
タイプ
数量
AMIS30660CANH2G Active
AEC Qualified
PPAP Capable
Pb-free
Halide free
CAN Transceiver, High Speed SOIC-8 751-07 2 Tube 96 Contact Sales Office
AMIS30660CANH2RG Active
AEC Qualified
PPAP Capable
Pb-free
Halide free
CAN Transceiver, High Speed SOIC-8 751-07 2 Tape and Reel 3000 Contact Sales Office
AMIS30660CANH6G Active
AEC Qualified
PPAP Capable
Pb-free
Halide free
CAN Transceiver, High Speed SOIC-8 751-07 3 Tube 96 Contact Sales Office
AMIS30660CANH6RG Active
AEC Qualified
PPAP Capable
Pb-free
Halide free
CAN Transceiver, High Speed SOIC-8 751-07 3 Tape and Reel 3000 Contact Sales Office
面実装デバイスためのモイスチャー・レベル(260°Cリフローでの鉛フリー測定、235°Cリフローでの鉛フリー以外測定)
マーケットリードタイム(週) :
Arrow   (2014-09-16 14:27) : 919
Digi-Key   (2014-09-16 00:00) : >1K
Mouser   (2014-09-16 00:00) : >1K
Newark   (2014-09-16 00:00) : <1K
マーケットリードタイム(週) :
Digi-Key   (2014-09-16 00:00) : >1K
Mouser   (2014-09-16 00:00) : >1K
Newark   (2014-09-16 00:00) : >1K
P&S   (2014-09-16 00:00) : >1K
マーケットリードタイム(週) :
マーケットリードタイム(週) :
Datasheet: High Speed CAN Transceiver
Rev. 10 (135.0kB)
»材料組成を表示
»製品変更通知 (3)
Product Overview

Product Compliance Status Description Data Transmission Standard Data Rate Number of Drivers Number of Receivers VCC Min (V) VCC Max (V) tPLH Max (µs) IO Max (µA) IIH Max (mA) Package Type
 AEC Qualified
 PPAP Capable
 Pb-free
 Halide free
 Active     CAN Transceiver, High Speed   CAN   1 Mb/s   1   1   4.75   5.25   1   45000   8   SOIC-8
 AEC Qualified
 PPAP Capable
 Pb-free
 Halide free
 Active     CAN Transceiver, High Speed   CAN   1 Mb/s   1   1   4.75   5.25   1   45000   8   SOIC-8
 AEC Qualified
 PPAP Capable
 Pb-free
 Halide free
 Active     CAN Transceiver, High Speed   CAN   1 Mb/s   1   1   4.75   5.25   1   45000   8   SOIC-8
 AEC Qualified
 PPAP Capable
 Pb-free
 Halide free
 Active     CAN Transceiver, High Speed   CAN   1 Mb/s   1   1   4.75   5.25   1   45000   8   SOIC-8
