MC14017B: Decade Counter/Divider

Datasheet: Decade Counter Rev. 6 (123.0kB)

»信頼性データを表示する »材料組成を表示 »製品変更通知 (12)

The MC14017B is a five-stage Johnson decade counter with built-in code converter. High speed operation and spike-free outputs are obtained by use of a Johnson decade counter design. The ten decoded outputs are normally low, and go high only at their appropriate decimal time period. The output changes occur on the positive-going edge of the clock pulse. This part can be used in frequency division applications as well as decade counter or decimal decode display applications.

特長
Fully Static Operation
DC Clock Input Circuit Allows Slow Rise Times
Carry Out Output for Cascading
Divide-by-N Counting
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range
Pin-for-Pin Replacement for CD4017B
Triple Diode Protection on All Inputs

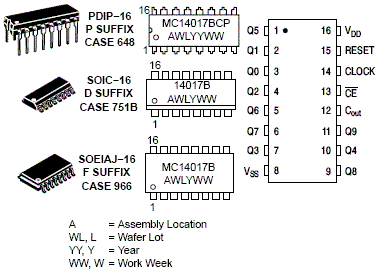

Pb-Free Packages are Available*
