製品の説明

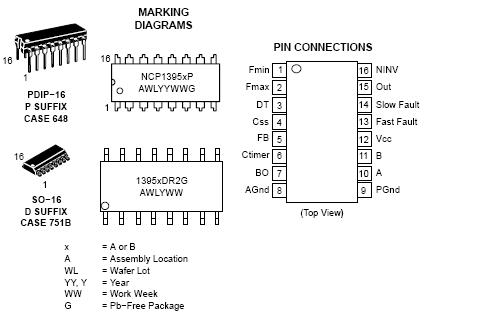

The NCP1395A/B offers everything needed to build a reliable and rugged resonant mode power supply. Its unique architecture includes a 1 MHz Voltage Controller Oscillator whose control mode brings flexibility when an ORing function is a necessity, e.g. in multiple feedback paths implementations. Protections featuring various reaction times, e.g. immediate shutdown or timer-based event, brown-out, broken opto-coupler detection etc., contribute to a safer converter design, without engendering additional circuitry complexity. An adjustable deadtime also helps lowering the shoot-through current contribution as the switching frequency increases.
Finally, an on-board operational transconductance amplifier allows for various configurations, including constant output current working mode or traditional voltage regulation.
|
特長 |
| |
|
- High Frequency Operation from 50 kHz up to 1.0 MHz
|
- Selectable Minimum Switching Frequency with ±3% Accuracy
|
- Timer-Based Input with Auto-Recovery Operation for Delayed Event Reaction
|
- Adjustable Deadtime from 150 ns to 1.0 µs
|
- Startup Sequence via an Adjustable Soft--Start
|
- Brown-Out Protection for a Simpler PFC Association
|
- Latched Input for Severe Fault Conditions, e.g. Overtemperature or OVP
|
- Enable Input for Immediate Event reaction or Simple ON/OFF Control
|
- Operational Transconductance Amplifier (OTA) for Multiple Feedback Loops
|
- Low Startup Current of 300 µA max
|
- Common Collector Optocoupler Connection
|
|

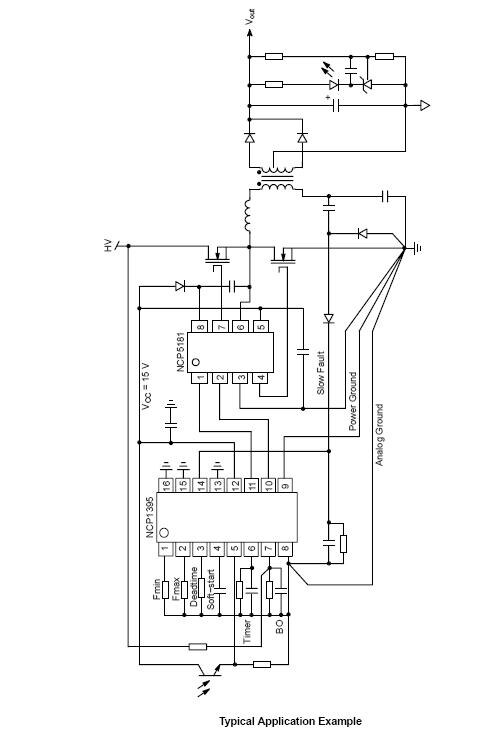

アプリケーション |
- LCD/Plasma TV Converters
- High Power Ac--Dc Adapters for Notebooks
- Industrial and Medical Power Sources
- Offline Battery Chargers
|
