NCP2820: Audio Power Amplifier, Class D, 2.65 W, Filterless, Mono

Overview
Specifications
Packages
Applications
Datasheet: 2.65 W Filterless Class-D Audio Power Amplifier
Rev. 8 (224kB)
»信頼性データを表示する
»材料組成を表示
»製品変更通知 (11)
Product Overview
製品説明

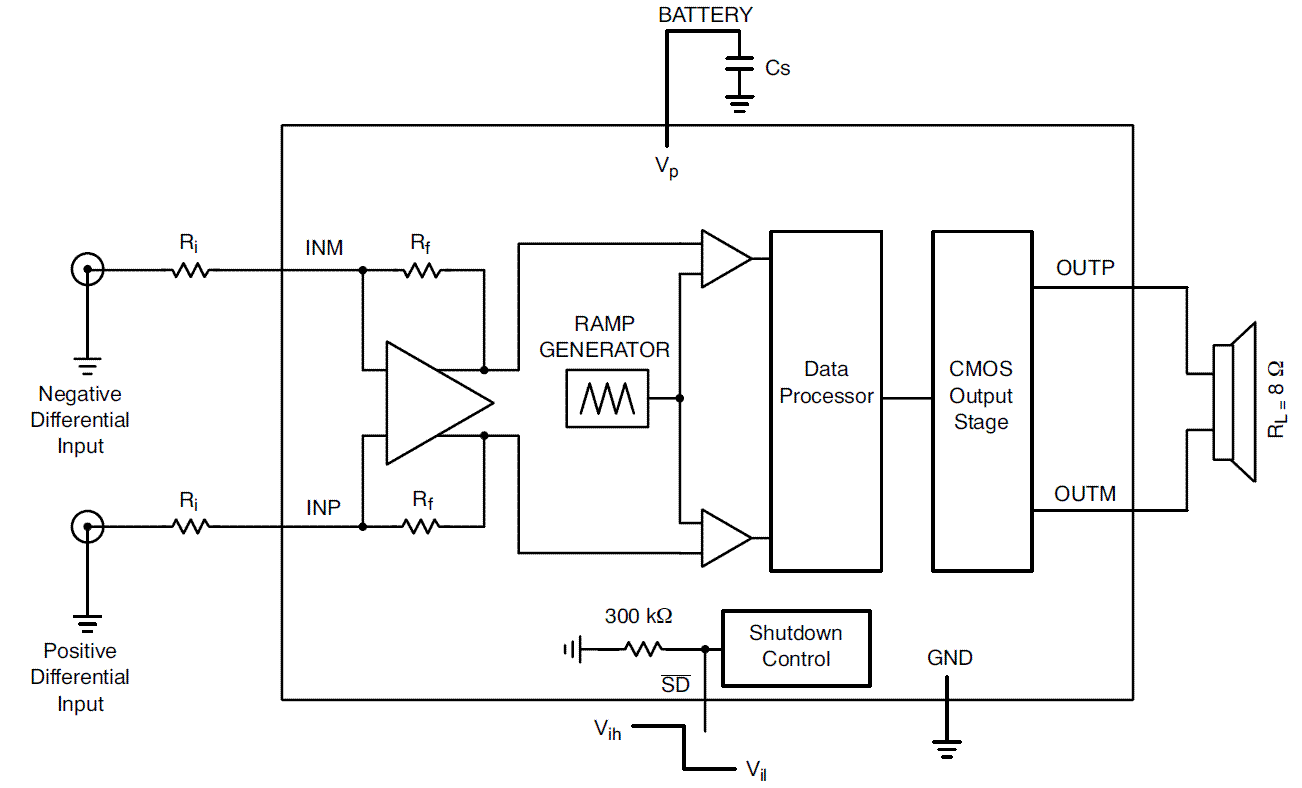

The NCP2820 is a cost-effective mono Class-D audio power amplifier capable of delivering 2.65W of continuous average power to 4 Ohm Bridge Tied Load from a 5V supply. Under the same conditions, the output power stage can provide 1.4W to a 8 Ohm BTL load with less than 1% THD+N. For cellular handsets or PDAs, it offers sapce and cost savings because no output filter is required when using inductive transducers. With more than 90% efficiency and very low shutdown current it increases the lifetime of your battery and drastically lowers the junction temperature.
The NCP2820 processes analog inputs with a pulse width modulation technique that lowers output noise and THD when compared to a conventional sigma-delta modulator. The device allows independent gain while summing signals from various audio sources. Thus, in cellular handsets, the earpiece, the loudspeaker and even the melody ringer can be driven with a single NCP2820. Due to its low 42uV noise floor, A-weighted, a clean listening is guaranteed no matter the load sensitivity.
特長

  • Optimized PWM Output Stage: Filterless Capability
  • Efficiency up to 90% and Low 2.5mA Typical Quiescent Current
  • Large Output Power Capability: 1.4W with 8Ω Load and THD+N<1%
  • Wide Supply Voltage Range: 2.5-5.5V Operating Voltage
  • High Performance, THD+N of 0.03%@Vp=5V, RL=8Ω, Pout=100mW
  • Excellent PSRR (-65dB): No Need for Voltage Regulation
  • Surface Mounted Package 9-Pin Flip-Chip CSP (SnPb and Pb-Free)
  • Fully Differential Design. Eliminates Two Input Coupling Capacitors
  • Very Fast Turn On/Off Times with Advanced Rising and Falling Gain Technique
  • External Gain Configuration Capability
  • Internally Generated 250kHz Switching Frequency
  • Short Circuit Protection Circuitry
  • Pop & Click Noise Protection Circuitry
アプリケーション   最終製品
  • Audio Amplification for 4ohm/ 8ohm speaker

  • Cellular Phone
  • Portable Game, DVD
  • Global Positioning System/ Device (GPS/ GPN)
  • Smart phone, PDA, PMP
技術資料&デザイン・リソース
シミュレーション・モデル (1) パッケージ図 (2)
データシート (1)
供給状況およびサンプル
製品
ステータス
Compliance
内容
パッケージ
MSL*
コンテナ
予算価格/ユニット
タイプ
ケース形状
タイプ
数量
NCP2820AFCT2G Last Shipments
Pb-free
Halide free
Audio Power Amplifier, Class D, 2.65 W, Filterless, Mono, 2.65 W Mono Class D Audio Amplifier with Fast Startup Time Flip-Chip-9 499AL 1 Die Surf Tape and Reel 3000
NCP2820FCT1G Active
Pb-free
Halide free
Audio Power Amplifier, Class D, 2.65 W, Filterless, Mono, 2.65 W Mono Class D Audio Amplifier Flip-Chip-9 499AL 1 Die Surf Tape and Reel 3000 $0.24
NCP2820FCT2G Active
Pb-free
Halide free
Audio Power Amplifier, Class D, 2.65 W, Filterless, Mono, 2.65 W Mono Class D Audio Amplifier Flip-Chip-9 499AL 1 Die Surf Tape and Reel 3000 $0.24
NCP2820MUTBG Active
Pb-free
Halide free
Audio Power Amplifier, Class D, 2.65 W, Filterless, Mono, 2.65 W Mono Class D Audio Amplifier DFN-8 506AV 1 Tape and Reel 3000 $0.3067
NCV2820MUTBG Active
AEC Qualified
PPAP Capable
Pb-free
Halide free
Audio Power Amplifier, Class D, 2.65 W, Filterless, Mono, 2.65W Filterless Mono Class D Audio Amplifier DFN-8 506AV 1 Tape and Reel 3000 $0.3987
NCP2820FCT1 Obsolete
Audio Power Amplifier, Class D, 2.65 W, Filterless, Mono, 2.65 W Mono Class D Audio Amplifier Flip-Chip-9 499AL 1 Die Surf Tape and Reel 3000
面実装デバイスためのモイスチャー・レベル(260°Cリフローでの鉛フリー測定、235°Cリフローでの鉛フリー以外測定)
マーケットリードタイム(週) :
マーケットリードタイム(週) :
Digi-Key   (2014-12-19 00:00) : <1K
Future Electronics   (2014-12-19 00:00) : <100
Mouser   (2014-12-19 00:00) : <1K
マーケットリードタイム(週) :
Digi-Key   (2014-12-19 00:00) : <1K
ON Semiconductor   (2014-12-17 00:00) : 96,000
マーケットリードタイム(週) :
Arrow   (2014-12-19 15:35) : 1079
Avnet   (2014-12-19 00:00) : >1K
Digi-Key   (2014-12-19 00:00) : >1K
Mouser   (2014-12-19 00:00) : >1K
マーケットリードタイム(週) :
ON Semiconductor   (2014-12-17 00:00) : 3,000
マーケットリードタイム(週) :
Datasheet: 2.65 W Filterless Class-D Audio Power Amplifier
Rev. 8 (224kB)
»信頼性データを表示する
»材料組成を表示
»製品変更通知 (11)
Product Overview

Product Compliance Status Description Class Output Power Typ (W) VCC Max (V) Output Type Efficiency Typ (%) ton Typ (ms) THD + N Typ (%) IQ Typ (mA) ISD Typ (nA) Package Type
 Pb-free
 Halide free
 Active     Audio Power Amplifier, Class D, 2.65 W, Filterless, Mono, 2.65 W Mono Class D Audio Amplifier   D   2.12   5.5   Differential   90   9   0.05   2.2   300   Flip-Chip-9
 Pb-free
 Halide free
 Active     Audio Power Amplifier, Class D, 2.65 W, Filterless, Mono, 2.65 W Mono Class D Audio Amplifier   D   2.12   5.5   Differential   90   9   0.05   2.2   300   Flip-Chip-9
 Pb-free
 Halide free
 Active     Audio Power Amplifier, Class D, 2.65 W, Filterless, Mono, 2.65 W Mono Class D Audio Amplifier   D   2.19   5.5   Differential   87   0.001   0.05   2.2   300   DFN-8
 AEC Qualified
 PPAP Capable
 Pb-free
 Halide free
 Active     Audio Power Amplifier, Class D, 2.65 W, Filterless, Mono, 2.65W Filterless Mono Class D Audio Amplifier   D   2.19   5.5   Differential   87   1   0.05   2.2   300   DFN-8
