NCV7450 System basis Chip Evaluation Board

Overview

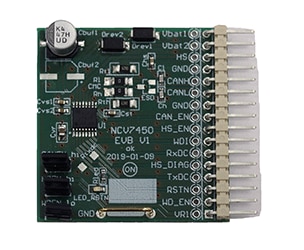

The NCV7450V1GEVB Evaluation Board efficiently and effectively evaluates the NCV7450, which integrates +5 V / 250 mA LDO with a high−speed CAN transceiver and one high−side driver with diagnostics, directly controlled by dedicated pins.

Evaluation/Development Tools
