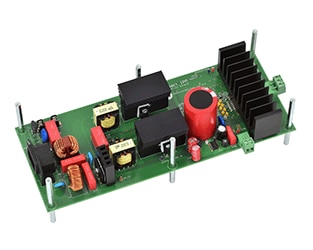

1kW 600V Industrial Motor Control Power Board with Compact Intelligent Power Module (IPM)

Overview

The SECO-1KW-MCTRL-GEVB is a complete reference design for three-phase motor drives, featuring the NFAQ1060L36T intelligent power module in a DIPS6 package. Rated for 230 Vac input and delivering up to 850W, all the necessary system blocks for a motor drive are part of the solution: EMC filtering and rectification stage, interleaved two-channel PFC, auxiliary power supplies, three-phase inverter and measurement and protection. The graphical user interface ensures an easy startup for evaluation purposes running voltage/frequency control. As part of the Motor Development Kit (MDK), the Compact IPM Motor Drive is compatible with the powerful Universal Controller Board (UCB) enabling high-end control strategies and AI capabilities for industrial motor control. The SECO-1KW-MCTRL-GEVB comprises of the 1kW power board and the hardware adaptor to the UCB.

  • White Goods (Washing Machines)
  • Industrial Fans
  • Industrial Automation
  • Industrial Motor Control
  • Motor Development Kit (MDK)
  • Downloadable V/f and FOC control use cases for the UCB
  • 850W Intelligent Power Module (IPM) three-phase motor driver
  • VIN: 230 Vac,rms ± 15% (single-phase)
  • IOUT: Irms 10 ARMS per phase
  • Compatible with three-phase motors: PMSM, BLDC or ACIM
  • DIP/6 IPM NFAQ1060L36T, three-phase/10A with integrated gate drivers
  • Cross-conduction, overcurrent and thermal protection embedded in DIPS6 module
  • Plug-in connector interface for MCU cards (Arduino DUE footprint)
  • Voltage/frequency control strategy implemented
  • NCS2250SN2T3G: Push Pull Output Comparator implemented in Itrip protection system

Evaluation/Development Tools

製品

タイプ

Ref. Design

状態

Part Used

アクション

1kW 600V Industrial Motor Control Power Board with Compact Intelligent Power Module (IPM)

$278.2622

More Details

Show More

1-25 of 25

Products per page

Jump to :

技術文書

Name / Description

Document Type

Modified date

SECO-1KW-MCTRL-GEVB_GERBER

1

Eval Board: Gerber

715.78 KB

EN

Eval Board: Gerber

November 01, 2020

More Details

Eval Board: Manual

September 01, 2021

More Details

SECO-1KW-MCTRL-GEVB_FIRMWARE

0

Software

363.52 KB

EN

Software

November 01, 2020

More Details

SECO-1KW-MCTRL-GEVB_GUI

Software

39.11 MB

EN

Software

May 01, 2020

More Details

SECO-1KW-MCTRL-GEVB_SCHEMATIC

2

Eval Board: Schematic

1.66 MB

EN

Eval Board: Schematic

November 01, 2020

More Details

SECO-1KW-MCTRL-GEVB_BOM_ROHS

2

Eval Board: BOM

168.96 KB

EN

Eval Board: BOM

November 01, 2020

More Details
