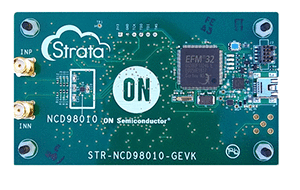

Strata Enabled NCD98010 12-bit SAR ADC Evaluation Board

Overview

The STR-NCD98010-GEVB provides an evaluation board for the NCD98010 driver using Strata Developer Studio. The NCD98010 is a ultra low power 12-bit SAR ADC that can run at up to 2MSPS. The NCD98010 comes in a small 1.5mm x 1.5mm DFN package. This evaluation board is used with Strata to control the NCD98010 and to provide dynamic performance metrics for different clock speeds and supply voltages. See the Strata webpage at www.onsemi.com/strata for more details!

  • Low-Power Data Acquisition
    - Battery-Powered Equipment
    - Level Sensors
    - Ultrasonic Flow Meters
    - Motor Controls
    - Wearable Fitness Devices
    - Portable Medical Equipment
    - Glucose Meters
  • 12-bit Analog to Digital Conversion
    - Fully Differential Input
    - Low 2pF Input Capacitance
  • Digital SPI Interface
    - Available in Signed and Unsigned Output Formats
  • Split Analog / Digital Supplies
    - Digital and Analog Supplies can be Supplied Separately from 1.65V to 3.6V
  • Low Power Consumption
    - 7uA at 100 kSPS
    - Analog Current Consumption CAN to go down to nano-amps with Slower Clock Rates
  • Small Package Size
    - 1.5 x 1.5 mm 8-pin X2QFN
  • Pre-Calibrated
