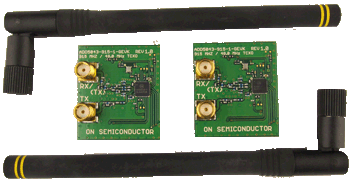

ADD5043-915-1-GEVK: AX5043 915 MHz Add-on kit for DVK-2 Evaluation Kit

Development kit comes with productivity-enhancing complete development tool suite
AX5043 is supported by the development kit DVK-2. This is a complete and flexible ready-to-go solution for easy testing, evaluation and development of ON Semiconductors RF ICs. It is suited for real performance tests using professional lab equipment, as well as for application code development. The DVK-2 is based on the AX8052F100 MCU and offers both the AX-RadioLab GUI as well as the advanced graphic integrated development environment AX8052-IDE together with the freely usable SDCC C-compiler to go with it.
製品 状態 Compliance 簡単な説明 使用パーツ アクション
ADD5043-915-1-GEVK Active
AX5043 915 MHz Add-on kit for DVK-2 Evaluation Kit AX5043-1-TW30
Avnet (2020-08-19) : 2
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Application Notes AX Development Systems - Troubleshooting Guide AND9621/D - 530 KB  2
Application Notes DVK-2 Quick Start Guide AND9698/D - 2036 KB  1
Eval Board: Gerber ADD5043-915-1-GEVK Gerber Layout Files (Zip Format) ADD5043-915-1-GEVK_GERBER - 85 KB  0
Eval Board: Schematic ADD5043-915-1-GEVK Schematic ADD5043-915-1-GEVK_SCHEMATIC - 68 KB  0
