ARX383CSSM28SUKAH3-GEVB: 0.3MP Evaluation Board with 0.3MP Mono 28deg Global Shutter CMOS Image Sensor

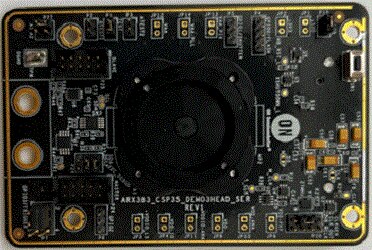

The ARX383CSSM28SUKAH3-GEVB Sensor Board uses the high Global Shutter Efficiency ARX383CS 0.3MP Mono 28deg Global Shutter sensor from onsemi. The sensor board can be interfaced to the Demo3 Evaluation Board, or with the AP1302 Evaluation Board stacked on Demo 3 Evaluation Board (AGB1N0CS-GEVK . The combined kit uses the popular DevSuite software from onsemi to configure the system. The software provides a comprehensive setup interface and flexibility to evaluate the sensor?s features and capabilities.

The sensor board comes with a lens suitable for evaluation. Users can use their own lens as long as it is compatible with the mechanical & optical requirements.

To get started with the ARX383CSSM28SUKAH3-GEVB, you will also need:
? Demo 3 Evaluation Board (AGB1N0CS-GEVK)
? AP1302 Evaluation Board (optional)
? DevSuite Software
評価/開発ツール情報
製品 状態 Compliance 簡単な説明 使用パーツ アクション
ARX383CSSM28SUKAH3-GEVB
Pb-free
0.3MP Evaluation Board with 0.3MP Mono 28deg Global Shutter CMOS Image Sensor ARX383CSSM28SMKA0-CR
技術文書
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Software DevSuite General Software Installer DevSuite_SW - 413893 KB  6.1.25
Software DevSuite Quick Start Guide DevSuite_QuickStartGuide - 607 KB  67
Eval Board: BOM ARX383 Bill of Materials (ROHS Compliant) ARX383_BOM_ROHS - 206 KB  0
Eval Board: Schematic ARX383 Schematic ARX383_CSP35_DEMO3HEAD_SER_SCHEMATIC - 117 KB  0
