CCR120PS3GEVK:  120V Constant Current Regulators LED lighting solution Evaluation Kit

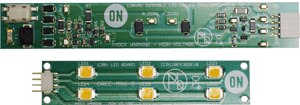

The CCR120PS3GEVK evaluation kit is a complete, offline linear LED lighting solution featuring ON Semiconductor Constant Current Regulators (CCRs). The evaluation kit is composed of two daughterboards?a driver board and an LED board. These boards were designed as separate modules to permit experimentation with different LEDs.

The circuit featured on this board is from the the design note DN05052/D, a Two-Stage, Parallel-to-Series topology for high PF, good efficiency, and good dimmability. The driver may be modified to accommodate different LED strings.

The driver evaluation board is are also available individually for experimentation with the Two-Stage Parallel-to-Series topology.
評価/開発ツール情報
製品 状態 Compliance 簡単な説明 使用パーツ アクション
CCR120PS3GEVK Active
Pb-free
120V Constant Current Regulators LED lighting solution Evaluation Kit NSIC2030BT3G NSIC2050BT3G
技術文書
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: BOM CCR120PS3GEVK Bill of Materials ROHS Compliant CCR120PS3GEVK_BOM_ROHS - 42 KB  0
Eval Board: Gerber CCR120PS3GEVK Gerber Layout Files (Zip Format) CCR120PS3GEVK_GERBER - 87 KB  0
Eval Board: Schematic CCR120PS3GEVK Schematic CCR120PS3GEVK_SCHEMATIC - 174 KB  0
Eval Board: Test Procedure CCR120PS3GEVK Test Procedure CCR120PS3GEVK_TEST_PROCEDURE - 527 KB  0
