FUSB252GEVB: Eval board for FSUSB252

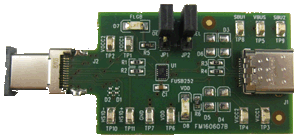

The FUSB252 evaluation board is designed to be inserted between a board that contains a Type-C controller (such as FUSB301 or FUSB302) and a source of voltage for OVP testing. Test points on the CC pins will allow OVP test scenarios to test the devices intended function. An LED indicator will show an OVP condition and the device should break connection to the USB host. If there isn’t access to a Type-C voltage source, test points (GND and VDD) are available on the board for direct power supply connections.

After performing OVP testing, the Type-C receptacle can accept a Type-C device such as a memory stick to demonstrate normal USB functionality (with SEL=L).
製品 状態 Compliance 簡単な説明 使用パーツ アクション
FUSB252GEVB Active
Eval board for FSUSB252 FUSB252UMX
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: BOM FUSB252GEVB Bill Of Materials (ROHS Compliant) FUSB252GEVB_BOM_ROHS - 110 KB  0
Eval Board: Gerber FUSB252GEVB Gerber Files (ZIP Format) FUSB252GEVB_Gerbers - 374 KB  0
Eval Board: Schematic FUSB252GEVB Schematic FUSB252GEVB_SCHEMATIC - 117 KB  0
Eval Board: Test Procedure FUSB252GEVB Test Procedure FUSB252GEVB_TEST_PROCEDURE - 12 KB  0
Eval Board: Manual FUSB252GEVB_USERS_GUIDE_V1-1.REV0.PDF FUSB252GEVB_USERS_GUIDE_V1-1.rev0 - 852 KB  0
