IAS1MOD-ARX3A0CSSM090110-GEVB: ARX3A0 Mono 121° DFOV IAS Module, 1/10/3-inch, 0.3 Mp Rolling Shutter Prototype

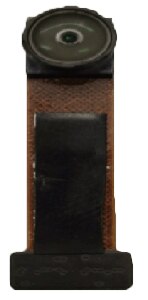

The ARX3A0 Mono 121° DFOV IAS Module is a 1/10.3-inch, 0.3 Mp fast rolling shutter prototype, which allows for easy development of low power, compact cameras based on the ARX3A0 CMOS image sensor. Part of the IAS module family from ON Semiconductor, the ARX3A0 Mono 121° DFOV IAS Module includes standardized connectors, layout configuration and OTPM protocols. The module features the ARX3A0 CMOS image sensor, which provides advanced 360 fps mono imaging for applications including machine vision and artificial intelligence.

To get started with the ARX3A0 IAS Module, you will also need:

Note: The modules are offered from ON Semiconductor as prototypes not intended for production shipments; however, manufacturers can work with ON Semiconductor distribution partners for equivalent mass production versions

DevSuite Software

Using the DevSuite software, developers can easily test and characterize the ARX3A0 sensor. The software also allows developers to display images directly from the sensor.

The DevSuite software is available online. For image sensor firmware and additional documentation, contact your local sales support.


  • Based on the ARX3A0 CMOS Image Sensor Mono Version
  • Compact size (6.5 x 30 x 5.49mm)
  • 1/10.3″ optical format
  • 2.2µm pixel size
  • 121° Diagonal Field of View (DFOV)


  • IoT and Low Power Applications
  • Machine Vision
  • Artificial Intelligence
  • AR/VR/MR
製品 状態 Compliance 簡単な説明 使用パーツ アクション
ARX3A0 Mono 121° DFOV IAS Module, 1/10/3-inch, 0.3 Mp Rolling Shutter Prototype ARX3A0CSSM00SMD20
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Software DevSuite General Software Installer DevSuite_SW - 479207 KB  6.1.5
Software DevSuite Quick Start Guide DevSuite_QuickStartGuide - 702 KB  64
Software DevSuite stand-alone ApBase SDK installer DevSuite ApBase - 6024 KB  6.1.5
Application Notes IAS Module EEPROM and OTPM Standard AND9865/D - 132 KB  1
Eval Board: Manual ARX3A0 IAS Module EVBUM2750/D - 157 KB  1
