Connected Lighting Platform for LED Control

Overview

The Connected Lighting Platform is a modular development kit for prototyping cost-effective, industrial LED lighting solutions. The platform is extremely energy efficient and features wireless control (on/off, dimming, etc.) and two independently controlled LED channels that provide a maximum brightness of 7000 lumens.

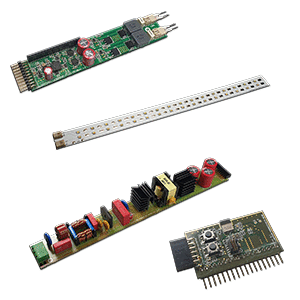

The base platform comprises of four components:

  • An LED module, supporting 2 strings (warm white and cool white) of 16 LEDs
  • A Bluetooth(R) Low Energy connectivity board featuring RSL10 SIP
  • An AC/DC power board (Vin AC: 90 - 270V, Vout DC: 55V, Pout electrical: 70W, Power Factor > 0.99 at full load)
  • An LED driver board featuring FL7760 (Dimming down to 0.6%, Telemetry data, 12-bit PWM)

The platform provides several LED control functionalities using the RSL10 Sense and Control mobile app (IoS, Google Play) or web client. The platform is supported by a comprehensive development environment, including a CMSIS-Pack featuring customizable firmware, Free RTOS, and various use cases.

The PoE Power Module is available separately for Power Over Ethernet (PoE) connectivity up to 90 Watts.

  • High-power lighting features
    • Up to 2 Strings of 16 LEDs (7000 Lumen)
    • Dual independent LED Channel
    • White balance control (12-bit Dimmer from 0 to Max)
  • Multiple connectivity options
    • Bluetooth® Low Energy
    • Power Over Ethernet (PoE)
  • Compliant with multiple industry standards
  • High efficiency power conversion ( >90% at full load )

Evalution/Development Tools

製品

タイプ

Ref. Design

状態

Part Used

アクション

Show More

1-25 of 25

Products per page

Jump to :

技術文書

Name / Description

Document Type

Modified date

LIGHTING-1-GEVK_3D_SCHEMATIC

0

Eval Board: Schematic

6.62 MB

EN

Eval Board: Schematic

December 01, 2019

More Details

750318486_TRANSFORMER_SPECIFICATIONS

0

Drawing: Marking Spec

91.14 KB

EN

Drawing: Marking Spec

October 14, 2020

More Details

LIGHTING-1-GEVK_GERBER

0

Eval Board: Gerber

6.39 MB

EN

Eval Board: Gerber

December 01, 2019

More Details

LIGHTING-1-GEVK_BOM_ROHS

0

Eval Board: BOM

2.26 MB

EN

Eval Board: BOM

December 01, 2019

More Details

LIGHTING-1-GEVK_SCHEMATIC

0

Eval Board: Schematic

857.09 KB

EN

Eval Board: Schematic

December 01, 2019

More Details

LIGHTING-KIT_FOTA_IMAGES

1

Software

771.07 KB

EN

Software

February 01, 2020

More Details

Connected Lighting Platform Getting Started Guide

1

Software

1.51 MB

EN

Software

March 01, 2020

More Details

EVBUM2705/D

0

Eval Board: Manual

1.82 MB

EN

Eval Board: Manual

April 01, 2020

More Details

Show More
