NB3X6X1XXG8DFNEVK: 8 kHz to 200 MHz One Time Programmable Clock Generator Evaluation Kit for 8 lead DFN Package

The NB3X6X1XXG8DFNEVK evaluation board is designed to test the NB3x60113G, one-time programmable (OTP), low power PLL based clock generators that supports any output frequency from 8 kHz to 200 MHz.

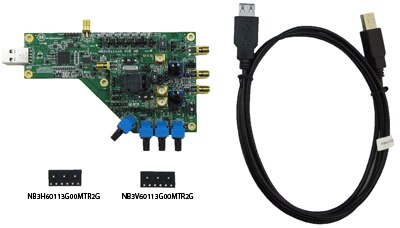

This evaluation board kit includes:
1. Main Board - 1pcs
2. Daughter Board - 1pcs
3. USB Cable - 1pcs
4. NB3H60113G00MTR2G - 3pcs
5. NB3V60113G00MTR2G - 3pcs

評価/開発ツール情報
製品 状態 Compliance 簡単な説明 使用パーツ アクション
NB3X6X1XXG8DFNEVK Consult Sales Office
Pb-free
8 kHz to 200 MHz One Time Programmable Clock Generator Evaluation Kit for 8 lead DFN Package NB3H60113G00MTR2G NB3V60113G00MTR2G
技術文書
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: BOM NB3X6X1XXG8DFNEVK Bill of Materials ROHS Compliant NB3X6X1XXG8DFNEVK_BOM_ROHS.pdf - 107 KB  1
Eval Board: Schematic NB3X6X1XXG8DFNEVK Schematic NB3X6X1XXG8DFNEVK_SCHEMATIC.pdf - 1381 KB  1
Eval Board: Manual NB3x6x1xxG8DFN OmniClock Evaluation Kit Manual EVBUM2358/D - 1267 KB  1
Video One Time Programmable Clock Generator Evaluation Kit for 8 lead DFN Package - NB3X6X1XXG8DFNEVK WVD17585/D
