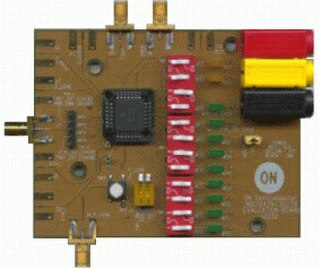

NBC124XXEVB:  PLL Synthesized Clock Generator Evaluation Board

The NBC124XXEVB evaluation board provides a flexible and convenient platform to quickly evaluate, characterize and verify the performance and operation of all three NBC124XX clock generators (NBC12429/430/439). The evaluation board is equipped with a PLCC−28 surface mount socket.


  • Accommodates NBC12429/430/439 clock generators
  • Supports use of 10 MHz to 20 MHz through hole or surface mount crystal
  • Incorporates DIP switch controlled M and N logic. Pins are programmed on board, minimizing excess cabling
  • P_Load is push button or externally controlled
  • Serial input interfaces are accessed externally via SMA connectors
  • Convenient and compact board layout
  • 3.3 V or 5 V split power supply operation
  • LVPECL/PECL differential output signals are monitored via SMA connectors
製品 状態 Compliance 簡単な説明 使用パーツ アクション
NBC124XXEVB Active
PLL Synthesized Clock Generator Evaluation Board NBC12429AFNR2G NBC12429FNR2G
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: Gerber NBC124XXEVB Gerber Layout Files (Zip Format) NBC124XXEVB_GERBER.ZIP - 597.0 KB  1
Eval Board: Manual NBC124XXEVB Evaluation Board User's Manual EVBUM2090/D - 1092.0 KB  4
