VCSEL Drv + Buck PWM CTLR

Overview

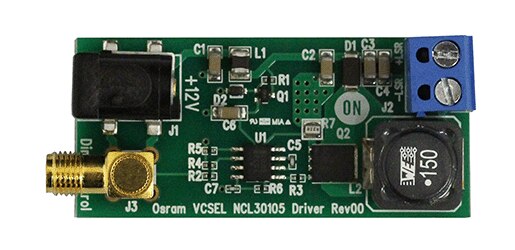

This evaluation board uses NCL30105 as a high pulse current low duty cycle VCSEL driver. The expected duty cycle is less than 5% in typical applications. The NCL30105 is an inverted buck converter design with constant off time control.

  • High Peak Current
  • Small Size
  • Fast Rise/Fall Time
  • PWM Control
