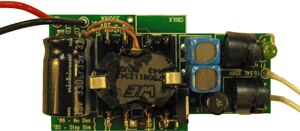

NCL30188FLYGEVB: Power Factor Corrected Quasi-Resonant Evaluation Board

The NCL30188FLYGEVB Evaluation Board is an Ac-Dc power factor corrected flyback controller targeting isolated and non−isolated buck-boost/SEPIC constant current LED drivers. The controller operates in a quasi−resonant mode to provide optimal efficiency. Thanks to a novel control method, the device is able to tightly regulate a constant LED current from the primary side. This removes the need for secondary side feedback circuitry, biasing and an optocoupler. The device is highly integrated with a minimum number of external components. A robust suite of safety protection is built in to simplify the design. This device is specifically intended for very compact, space efficient designs.

製品 状態 Compliance 簡単な説明 使用パーツ アクション
NCL30188FLYGEVB Active
Power Factor Corrected Quasi-Resonant Evaluation Board NCL30188ADR2G
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: BOM NCL30188FLYGEVB Bill Of Materials (ROHS compliant) NCL30188FLYGEVB_BOM_ROHS - 37 KB  0
Eval Board: Gerber NCL30188FLYGEVB Gerber Layout Files (Zip Forat) NCL30188FLYGEVB_GERBER - 207 KB  0
Eval Board: Schematic NCL30188FLYGEVB Schematic NCL30188FLYGEVB_SCHEMATIC - 158 KB  0
Eval Board: Test Procedure NCL30188FLYGEVB Test Procedure NCL30188FLYGEVB_TEST_PROCEDURE - 207 KB  0
Eval Board: Manual NCL30185FLYGEVB, NCL30188FLYGEVB EVBUM2551/D - 1074 KB  0
