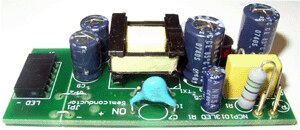

NCP1013LEDGEVB:  5 W Universal LED Driver Evaluation Board

The controller used in this application is a low cost monolithic design, the NCP1013. This, and the other members of the family, from the NCP1010 to the NCP1014, allow for the design of low cost, yet fully featured, switched mode power supplies. The design comprises an input filter, bridge rectifier, bulk capacitors and a line inductor, the power stage, rectifier diode and smoothing capacitors. Feedback is CVCC, constant current drive for the LED's with a constant voltage in the event of an open circuit output.


  • Wide input voltage range 85 Vac to 265 Vac
  • Small size, and low cost
  • Good line regulation
  • High efficiency
  • Overload and short circuit protection
製品 状態 Compliance 簡単な説明 使用パーツ アクション
5 W Universal LED Driver Evaluation Board NCP1013ST100T3G
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: BOM NCP1013LEDGEVB Bill of Materials ROHS Compliant NCP1013LEDEVB_BOM_ROHS.PDF - 60.0 KB  0
Eval Board: Gerber NCP1013LEDGEVB Gerber Layout Files (Zip Format) NCP1013LEDEVB_GERBER.ZIP - 38.0 KB  0
Eval Board: Schematic NCP1013LEDGEVB Schematic NCP1013LEDEVB_SCHEMATIC.PDF - 127.0 KB  0
Eval Board: Test Procedure NCP1013LEDGEVB Test Procedure NCP1013LEDEVB_TEST_PROCEDURE.PDF - 192.0 KB  0
