NCP1095GEVB: PoE-PD Interface Controller Evaluation Board, IEEE 802.3bt

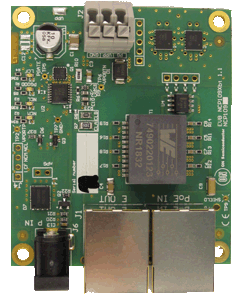

The NCP1095 is a member of ON Semiconductor's Power over Ethernet-Powered Device (PoE-PD) product family and integrates an IEEE 802.3bt compliant PoE-PD interface controller. It incorporates the required functions of a PoE system such as detection, classification, and current limiting and also supports high-power applications (up to 100W) through an external transistor and sense resistor. The NCP1095GEVB enables the evaluation of the NCP1095 controller and includes RJ-45 connectors, power transformer, active bridge (Greend Bridge2) and other fixtures to help the end user with testing.
評価/開発ツール情報
製品 状態 Compliance 簡単な説明 使用パーツ アクション
NCP1095GEVB Active
Pb-free
PoE-PD Interface Controller Evaluation Board, IEEE 802.3bt 2N7002LT1G BC846BPDW1T1
BC856BLT1G FDMC8622
FDMQ8205A MM3Z18VT1G
MMBZ27VALT1G NCP1095DBR2
NRVTS860EMFST1G
FutureElectronics (2020-08-19) : 1
技術文書
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: BOM NCP1095GEVB_BOM_ROHS.rev0 NCP1095GEVB_BOM_ROHS - 54 KB  0
Eval Board: Gerber NCP1095GEVB_GERBER.rev0 NCP1095GEVB_GERBER - 585 KB  1
Eval Board: Schematic NCP1095GEVB_SCHEMATIC.rev0 NCP1095GEVB_SCHEMATIC - 474 KB  0
Eval Board: Manual NCP1095 Evaluation Board User's Manual EVBUM2644/D - 738 KB  0
