NCP45491PMNGEVB: NCP45491 dual mode evaluation board

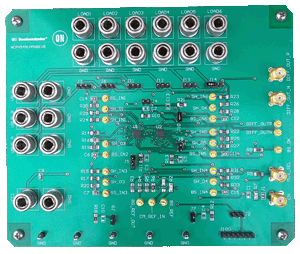

The NCP45491PMNGEVB is an evaluation board demonstrating the NCP45491 in paired mode (or dual mode) operation. Two NCP45491 parts are configured with 6 channels with test points available for observing all power monitoring signals in operation. While the evaluation board demonstrates 6 channels, up to 8 channels are possible in paired mode. The evaluation board also provides a means of quick prototyping for specific applications.
評価/開発ツール情報
製品 状態 Compliance 簡単な説明 使用パーツ アクション
NCP45491PMNGEVB Active
Pb-free
NCP45491 dual mode evaluation board NCP45491XMNTWG
技術文書
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: Manual NCP45491 Paired Mode Evaluation Board User's Manual EVBUM2592/D - 1919 KB  0
Eval Board: BOM NCP45491PMNGEVB_BOM_ROHS.rev0 NCP45491PMNGEVB_BOM_ROHS - 162 KB  0
Eval Board: Gerber NCP45491PMNGEVB_GERBER.rev0 NCP45491PMNGEVB_GERBER - 123 KB  0
Eval Board: Schematic NCP45491PMNGEVB_SCHEMATIC.rev0 NCP45491PMNGEVB_SCHEMATIC - 185 KB  0
