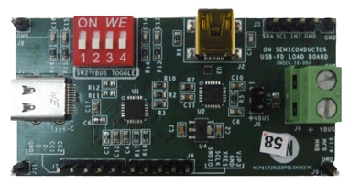

NCP81239LOADGEVK: USB Power Delivery 4-Switch Buck Boost Controller Evaluation Kit

The NCP81239LOADGEVK USB Power Delivery (PD) Controller Evaluation Board is a synchronous buck boost that is optimized for converting battery voltage or adapter voltage into power supply rails required in notebook, tablet, and desktop systems, as well as many other consumer devices using USB PD standard and C-Type cables.

This Kit is designed to be used with the NCP81239REFGEVB

評価/開発ツール情報
製品 状態 Compliance 簡単な説明 使用パーツ アクション
NCP81239LOADGEVK
USB Power Delivery 4-Switch Buck Boost Controller Evaluation Kit NCP4641H033T1G NCP81239MNTXG
NUP4060AXV6T1G
技術文書
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: BOM NCP81239LOADGEVK Bill of Materials (ROHS Compliant) NCP81239LOADGEVK_BOM_ROHS - 115 KB  0
Eval Board: Schematic NCP81239LOADGEVK Schematic NCP81239LOADGEVK_SCHEMATIC.pdf - 87 KB  2
Eval Board: Test Procedure NCP81239LOADGEVK Test Procedure NCP81239LOADGEVK_TEST_PROCEDURE - 350 KB  0
Eval Board: Gerber NCP81239LOADGEVK Gerber Layout Files (Zip Format) NCP81239LOADGEVK_GERBER.rev0.zip - 1027 KB  2
