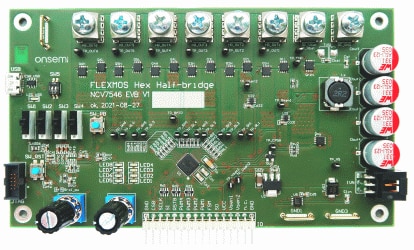

NCV7546VTFS5C460GEVB: NCV7546 FLEXMOSTM Hex Half-Bridge MOSFET Pre-driver

The NCV7546VTFS5C460GEVB is designed to quickly evaluate the NCV7546
Hex Half-Bridge pre-driver.
The design demonstrates a full application incorporating: WDFN8 (?8FL) MOSFETs,
a microcontroller, 5 V voltage regulator, current-sense amplifiers, controls and USB interface.

The board is intended to provide quick and convenient means for
evaluation of NCV7546 application either standalone, controlled from a PC
or by an external microcontroller.
評価/開発ツール情報
製品 状態 Compliance 簡単な説明 使用パーツ アクション
NCV7546VTFS5C460GEVB Active
Pb-free
NCV7546 FLEXMOSTM Hex Half-Bridge MOSFET Pre-driver NCV213RSQT2G NCV4264-2CST50T3G
NCV7546MWTXG NUP2114UCMR6T1G
NVTFS5C454NLTAG NVTFS5C460NLTAG
技術文書
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: BOM NCV7546VTFS5C460GEVB Bill of Materials (ROHS Compliant) NCV7546VTFS5C460GEVB_BOM_ROHS.pdf - 385 KB  0
Eval Board: Test Procedure NCV7546VTFS5C460GEVB Test Procedure NCV7546VTFS5C460GEVB_TEST_PROCEDURE.pdf - 1443 KB  0
Eval Board: Manual NCV7546 FLEXMOS™ Hex Half-Bridge MOSFET Pre-driver Evaluation Board User's Manual EVBUM2840/D - 9268 KB  0
Eval Board: Schematic NCV7546VTFS5C460GEVB Schematic NCV7546VTFS5C460GEVB_SCHEMATIC.pdf - 2966 KB  0
Software NCV7546VTFS5C460GEVB Demo Board Setup NCV7546VTFS5C460GEVB DEMO_BOARD_SETUP - 7839 KB  0
