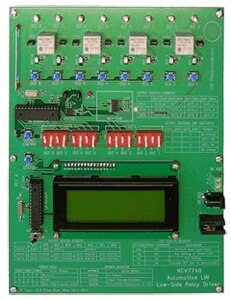

NCV7748GEVB: Eight Channel Low-Side Relay Drivers with LIN Communication Evaluation Board

The NCV7748GEVB evaluation board is an octal low-side relay driver for automotive applications targeted for use in a Power Distribution Box (PDB). Communication to the device is through a LIN bus compliant to SAE J2602 and LIN 2.x. All drivers have passive output clamps for limiting output voltage spikes during flyback events during inductive relay turn-off events.
特長およびアプリケーション

特長

  • On-board Relay Demonstration
  • Individual Output Drive Control
  • Status Request for Error Reporting

利点

  • Optional Off-board Connections

アプリケーション

  • Automotive
  • Engine Control Unit (ECU)
  • Windshield Wipers
  • Sunroof
  • Cruise Control
  • Rear Window Defroster
  • Cooling Fans
  • Ignition
  • Horn
  • Headlights
評価/開発ツール情報
製品 状態 Compliance 簡単な説明 使用パーツ アクション
NCV7748GEVB Active
Pb-free
Eight Channel Low-Side Relay Drivers with LIN Communication Evaluation Board MRA4003T3G NCV4274ADT50RKG
NCV7321D11R2G NCV7748D2R2G
NUP1105LT1G
技術文書
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: Manual NCV7748GEVB Evaluation Board User's Manual EVBUM2484/D - 3294 KB  0
Eval Board: BOM NCV7748GEVB Bill of Materials (ROHS Compliant) NCV7748GEVB_BOM_ROHS - 34 KB  0
Eval Board: Gerber NCV7748GEVB Gerber Layout Files (Zip Format) NCV7748GEVB_GERBER - 187 KB  0
Eval Board: Schematic NCV7748GEVB Schematic NCV7748GEVB_SCHEMATIC - 324 KB  0
Eval Board: Test Procedure NCV7748GEVB Test Procedure NCV7748GEVB_TEST_PROCEDURE - 125 KB  0
