NCV78763R1DAGEVB: NCV78763 Daughter board

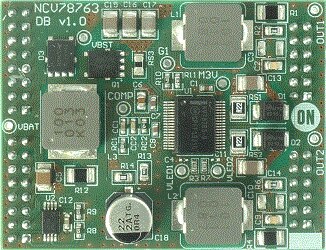

The NCV78763R1DAGEVB is a form factor Reference Design of Automotive Boost-to-Buck Power LED Driver for driving two LED strings up to 1.6A/60V. The reference design can be interfaced via I/O pins and the SPI bus to an external microcontroller. It is part of the NCV78763R1GEVK evaluation kit which provides a complete solution turning SPI commands into LED string control. Note: This board is part of the NCV78763R1GEVK LED Driver Evaluation Kit.
評価/開発ツール情報
製品 状態 Compliance 簡単な説明 使用パーツ アクション
NCV78763R1DAGEVB Active
Pb-free
NCV78763 Daughter board CAV25320YE-GT3 NCV78763DQ9R2G
NRVB5H100MFST1G
技術文書
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: BOM NCV78763R1DAGEVB Bill of Materials (ROHS Compliant) NCV78763R1DAGEVB_BOM_ROHS.pdf - 266 KB  0
Eval Board: Gerber NCV78763R1DAGEVB Gerber Layout Files (Zip Format) NCV78763R1DAGEVB_GERBER.zip - 205 KB  0
Eval Board: Schematic NCV78763R1DAGEVB Schematic NCV78763R1DAGEVB_SCHEMATIC.pdf - 519 KB  0
