NCV78XXXDRVR1GEVB: NCV78xxx LED Driver EVB

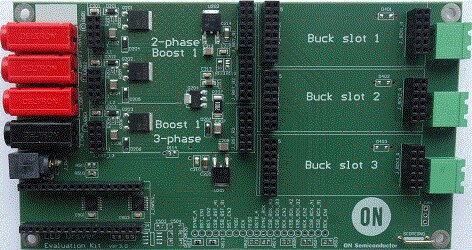

The NCV78XXXDRVR1GEVB Mother board allows to accommodate broad selection of LED Driver daughter boards. It offers one position for booster device (up to 3 booster phases) and 3 Buck channel slots. ONMCU5V0R1GEVB MCU control board can be inserted into dedicated socket as interface between PC and evaluated devices. Also double size NCV78XXXPLTFR1GEVB LED Platform Mother Board exists. It contains two positions for booster devices (total 6 booster phases) and 6 Buck channel slots.
評価/開発ツール情報
製品 状態 Compliance 簡単な説明 使用パーツ アクション
NCV78XXXDRVR1GEVB Active
Pb-free
NCV78xxx LED Driver EVB MBR1H100SFT3G MC74HC138ADTR2G
MMSZ5242BT1G NCV5501DT33RKG
NCV5501DT50RKG NSS60601MZ4T1G
技術文書
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: BOM NCV78XXXDRVR1GEVB Bill of Materials (ROHS Compliant) NCV78XXXDRVR1GEVB_BOM_ROHS.pdf - 263 KB  0
Eval Board: Schematic NCV78XXXDRVR1GEVB Schematic NCV78XXXDRVR1GEVB_SCHEMATIC.pdf - 1120 KB  0
Eval Board: Gerber NCV78XXXDRVR1GEVB Gerber Layout Files (Zip Format) NCV78XXXDRVR1GEVB_GERBER.zip - 311 KB  0
