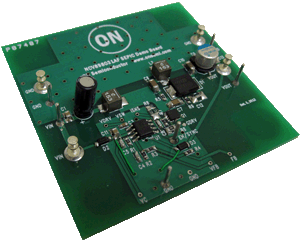

NCV898031SEPGEVB:  SEPIC Boost Evaluation Board

The NCV898031 is an adjustable output non-synchronous 2 MHz SEPIC/boost controller which drives an external N-channel MOSFET. The device uses peak current mode control with internal slope compensation. The IC incorporates an internal regulator that supplies charge to the gate driver. Protection features include internally-set soft-start, undervoltage lockout, cycle-by-cycle current limiting and thermal shutdown.

Additional features include low quiescent current sleep mode and microprocessor compatible enable pin.

製品 状態 Compliance 簡単な説明 使用パーツ アクション
NCV898031SEPGEVB Active
SEPIC Boost Evaluation Board NCV898031D1R2G
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: Manual NCV898031SEPGEVB Evaluation Board User's Manual EVBUM2167/D - 608 KB  2
Eval Board: BOM NCV898031SEPGEVB Bill of Materials ROHS Compliant NCV898031SEPGEVB_BOM_ROHS.PDF - 45.0 KB  2
Eval Board: Gerber NCV898031SEPGEVB Gerber Layout Files (Zip Format) NCV898031SEPGEVB_GERBER.ZIP - 67.0 KB  0
Eval Board: Schematic NCV898031SEPGEVB Schematic NCV898031SEPGEVB_SCHEMATIC.PDF - 190.0 KB  1
Eval Board: Test Procedure NCV898031SEPGEVB Test Procedure NCV898031SEPGEVB_TEST_PROCEDURE.PDF - 15 KB  3
Video SEPIC Boost Evaluation Board - NCV898031SEPGEVB Test Procedure WVD17014/D

SEPIC Boost Evaluation Board - NCV898031SEPGEVB Test Procedure
