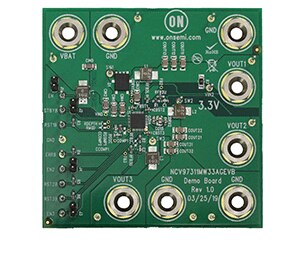

NCV97311MW33AGEVB: NCV97311MW33AGEVB Evaluation Board

The NCV97311 is 3−output regulator consisting of a low−Iq battery−connected 3 A 2 MHz non−synchronous switcher and two low−voltage 1.5 A 2 MHz synchronous switchers; all using integrated power transistors. The high−voltage switcher is capable of converting a 4.1 V to 18 V battery input to a 3.3 V output at a constant 2 MHz switching frequency, delivering up to 3 A.
評価/開発ツール情報
製品 状態 Compliance 簡単な説明 使用パーツ アクション
NCV97311MW33AGEVB Active
Pb-free
NCV97311MW33AGEVB Evaluation Board NCV97311MW33AR2G
技術文書
タイプ ドキュメント・タイトル ドキュメント ID/サイズ 修正
Eval Board: Manual NCV97311A Evaluation Board User's Manual EVBUM2620/D - 1688 KB  0
Eval Board: Gerber NCV97311MW33AGEVB Gerber NCV97311MW33AGEVB_GERBER - 137 KB  0
Eval Board: BOM NCV97311MW33AGEVB Bill of Materials (ROHS Compliant) NCV97311MW33AGEVB_BOM_ROHS - 101 KB  0
Eval Board: Schematic NCV97311MW33AGEVB Schematic NCV97311MW33AGEVB_SCHEMATIC - 446 KB  0
Eval Board: Test Procedure NCV97311MW33AGEVB Test Procedure NCV97311MW33AGEVB_TEST_PROCEDURE - 206 KB  0
