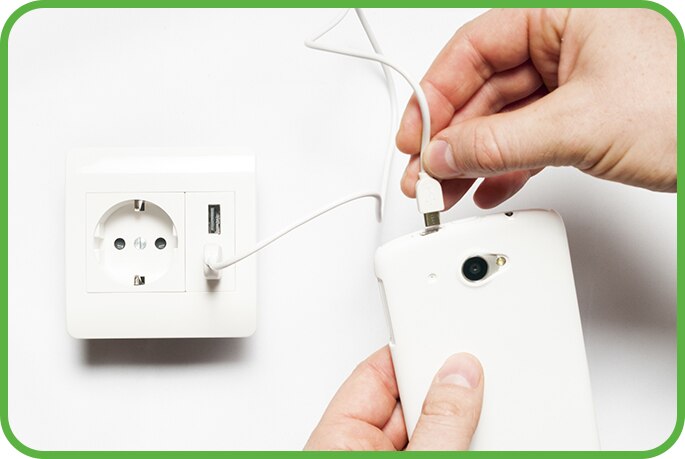

USB Wall Receptacle

Wall receptacles that include direct USB cable connections are becoming increasing popular for charging mobile devices. ON Semiconductor offers high performance, high density USB-C (Type-C) power supplies for the USB wall receptacle solutions.

Block Diagram

System Devices




Port Power




Control




Sign up to receive more information about USB Type C devices

I agree that the information that I provide will be used in accordance with the terms of the ON Semiconductor Privacy Policy.

System Devices
Function Device Description Download Data Sheet
Protection NIS5135 Electronic Fuse, 5 V
ESD5581 ESD Protection, Bidirectional, 5 V, 10 pF
NSPM2052 ESD and Surge Protection Device, Vbat and Vbus Applications, 5 V
NSPM0061 ESD and Surge Protection, 6.3 V
NSPM0101 ESD and Surge Protection, 10 V, 60 A
NSPM5131 ESD and Surge Protection Device, Unidirectional, 13.5 V

Back ↑

Port Power
Function Device Description Download Data Sheet
Power Regulation NCP1342 Quasi-Resonant Flyback Controller with Valley Lock-Out Switching
NCP4306 Secondary Side Synchronous Rectification Driver for High Efficiency SMPS Topologies

Back ↑

Control
Function Device Description Download Data Sheet
Port Control FUSB302TMPX Programmable USB Type-C Controller with PD (Default SRC)
FUSB3301MPX USB Type-C Source-Only Controller
NCP1095 Power Over Ethernet – Powered Device Interface Controller, IEEE 802.3bt
NCP1096 Power Over Ethernet – Powered Device Interface Controller with integrated hot swap FET, IEEE 802.3bt

Back ↑

Evaluation Boards

Evaluate your design with our board along with Strata Developer Studio™, our new cloud-connected development platform, enables quick and easy simulation & evaluation, design ready solutions and advanced support capability for your USB-PD design.

Evaluation Board ID Evaluation Board Description Strata Developer Studio
STR-USBC-2PORT-100W-EVK USB PD Automotive 2-Port 100W Source Download Strata Developer Studio
STR-USBC-4PORT-200W-EVK USB PD AC-DC 4-Port 200W Source
