USB Type-C Solutions

The USB-C (formally known as USB Type-C) standard enables higher performance and promises convenience for users and simplicity for designers and manufacturers. ON Semiconductor delivers a complete portfolio for the USB Type-C and Power Delivery (PD) solutions.

USB Type-C™ Use Cases

AC / DC Wall Adapter » Accessories » USB Wall Receptacle »
USB Type C left relation
Active Cable »
USB Type C left relation
PC / Laptop » Smartphone » Docking Station / HDD »

Possible End Applications

Automotive
Audio and Infotainment System

Computing & Peripherals
Desktop Computer, Notebook Computer,
Multi-Function Printer, Server

"Power Supply
Smartphone and Tablet Adapter:
5 - 20 W, Power Adapter: 20 W

Consumer
USB Type-C, Game Console,
Digital Video Recorder, LCD TV

Portable & Wireless
Power Bank, Smartphone, Tablet,
Wearable, Wireless Headset

Medical
Blood Glucose Meter

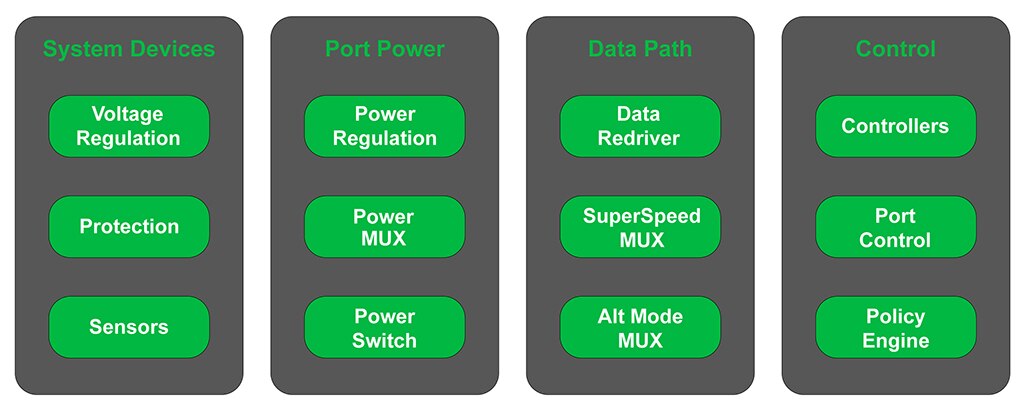

Power Delivery System Solutions

responsive image

USB Type C Solutions – Fundamental Overview

What is USB Power Delivery (PD)?

Bidirectional power charging:

The latest USB Power Delivery specification supported by the USB-C standard allows for power transfers of up to 100 watts (20 volts, 5 amperes), enabling fast charging. The USB Type-C standard allows for bidirectional power - this enables the product with ample power (Host or Peripheral) to provide the power to the other device.

Fast charging & data transmission simultaneously:

The USB Power Delivery Specification offers Fast Role Swap capability – it enables the maximum functionality of USB by providing more flexible power delivery and data over a single cable simultaneously.

Support different protocols:

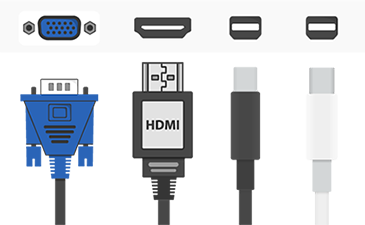

The USB Type-C ports can also support various protocols using Alternate Modes, which allows you to have adapters that can output HDMI, VGA, DisplayPort, or other types of connections from that single USB port. This one cable eliminates the need of having individual cables for each end device.

Learn More about USB Type-C Power Delivery</a >

What is USB Type-C?

One port, One single cable:

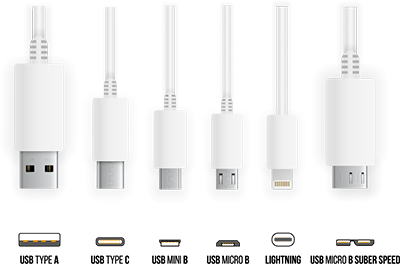

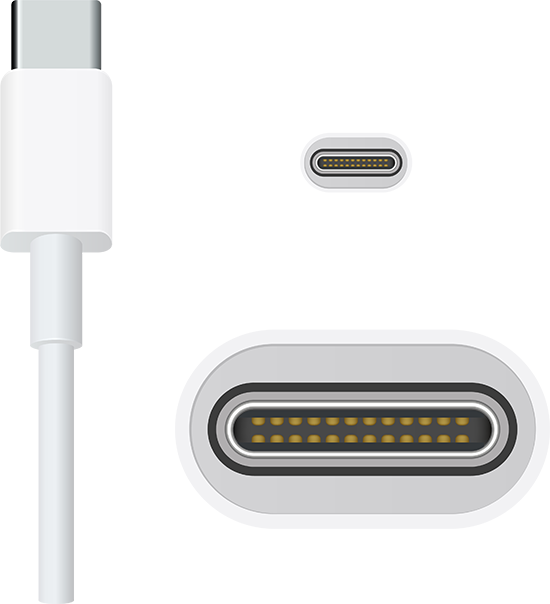

One port, One single cable: The USB-C (formally known as USB Type-C) is the newest standard for USB connectors, ports, and cables. The USB Type-C connector is a reversible, 24-pin, double-sided connector that offers connectivity to multiple end devices such as laptops, tablets, PCs, monitors, and smartphones with one single cable.

Super Speed:

Almost all devices that support the USB 3.1 use the USB-C port. The USB 3.1 has a top speed of 10 Gbps and can deliver a power output of up to 20 volts (100 watts) and 5 amperes.

Power Delivery (PD) support:

The USB Type-C allows every port to be your power, data, or video port.

Learn More about USB Type-C</a >

Dual Role Port (DRP), Downstream Facing Port (DFP), and Upstream Facing Port (UFP)

Different types of USB Type-C ports were developed based on the specifications of data flow in a USB connection and the direction of power in a Power Delivery connection.

Ports that play a role in data flow and power delivery:
    • Downstream Facing Port (DFP):
      USB Type-C port present on a device that connects to a USB host, e.g., Flash Drive, Monitors, Mouse, etc. It is also known as the consumer/sink USB port, responsible for sinking power from the power conductor.

    • Upstream Facing Port (UFP):
      The USB Type-C port that is present on a device that connects to a USB host, e.g. Flash Drive, Monitors, Mouse, etc. It is also known as the consumer/sink USB port that is responsible for sinking power from the power conductor.

  • Dual Role Port (DRP):
    USB Type-C port that can switch between being a DFP or a UFP. It can operate as a provider or a consumer as its power delivery role is reversible dynamically.
