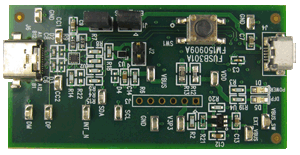

FUSB301AGEVB: Autonomous USB Type-CTM Controller with Configurable I2C Address
The FUSB301A is an autonomous USB Type-C controller device designed to negotiate the Type-C
interface connections. This document along with the FUSB301A datasheet are a guide to using the
evaluation board designed for this device. The FUSB301A is designed to be controlled from an application processor so for demonstration purposes a microcontroller has been added to the board for convenient chip control and graphical user interface (GUI). Fairchild will supply this GUI to assist in the Evaluation of the FUSB301A. If no GUI control is available the FUSB301A will boot up in UFP mode. |
評価/開発ツール情報
| 製品 | 状態 | Compliance | 簡単な説明 | 使用パーツ | アクション | |
|---|---|---|---|---|---|---|
| FUSB301AGEVB | Active |
|
Autonomous USB Type-CTM Controller with Configurable I2C Address | FUSB301ATMX |
技術文書
| タイプ | ドキュメント・タイトル | ドキュメント ID/サイズ | 修正 |
| Eval Board: Manual | FUSB301A EVB User Manual | FUSB301A EVB User Manual - 965 KB | 2.1 |
| Eval Board: Gerber | FUSB301AGEVB Gerber Files (ZIP Format) | FUSB301AGEVB_GERBER - 2997 KB | 0 |
| Eval Board: BOM | FUSB301AGEVB Bill Of Materials (ROHS Compliant) | FUSB301AGEVB_BOM_ROHS - 38 KB | 0 |
| Eval Board: Schematic | FUSB301AGEVB Schematic | FUSB301AGEVB_SCHEMATIC - 281 KB | 0 |
| Eval Board: Test Procedure | FUSB301AGEVB Test Procedure | FUSB301AGEVB_TEST_PROCEDURE - 269 KB | 0 |
