The IGBT Modules portfolio from ON semiconductor can be used for automotive application in the traction inverters and for the DC-AC stages of solar inverters, energy storage systems, uninterruptible power supplies (UPS), and motor drive applications. These state of the art IGBT modules utilize the new narrow mesa IGBT technology in providing high current density and robust short circuit protection along with higher blocking voltage to deliver outstanding performance. ON Semiconductor also offers the VE-Trac Direct family of highly integrated power modules with industry-standard footprints for Hybrid and Electric Vehicle (HEV) traction inverter application. ON Semiconductor's latest generation of IGBTs and Diodes are incorporated into the VE-Trac products. The 750 V VE-Trac products use the latest 4th Generation of IGBTs from ON Semiconductor. These modules integrate Field Stop 4 (FS4) IGBTs in a six pack configuration that show low power losses in lighter loads, which helps to improve overall system efficiency in automotive applications.

Product Family

Automotive IGBT Modules

IGBT Modules for automotive applications such as traction inverter in electric vehicles (EV) and hybrid electric vehicles (HEV).

Industrial IGBT Modules

IGBT Modules for DC-AC stages of solar inverters, energy storage systems, uninterruptible power supplies (UPS), and motor drive applications.

Featured New Products

NVH820S75L4SPB
  • Direct cooling with integrated Pin-Fin Heatsink offers low system cost
  • Highly integrated 6-pack topology for easy design and system integration
  • Tjmax = 175°C continuous operation temperature enables higher inverter peak output power
NVG800A75L4DSC
  • Half bridge dual-side cooling in a scalable, modular, and compact package
  • Smart On Chip current and temperature sensor offer fast reaction time and better accuracy
  • Wirebond-Free structure enables longer power cycle and operation lifetime

Videos

VE-Trac Power Module Platform

The VE-Trac Power Module Platform is the most efficient IGBT Module for EV traction inverter solutions. Find out about the different...

Energy Infrastructure | Solutions for Solar Inverters

Governments across the world are setting policies to increase the use of renewable energy. Thus the solar market is experiencing rapid growth with...

Solar Home and Battery Storage Demo

Take a look at our solar home simulation with battery storage capabilities, featuring our Q0, Q1, and Q2 power integrated modules...

Product Resources

Efficient Traction Inverters Boost Electric Vehicle Range to Increase Adoption Rates

The adoption rate of battery electric vehicles (BEVs) is steadily increasing, although slower than earlier...

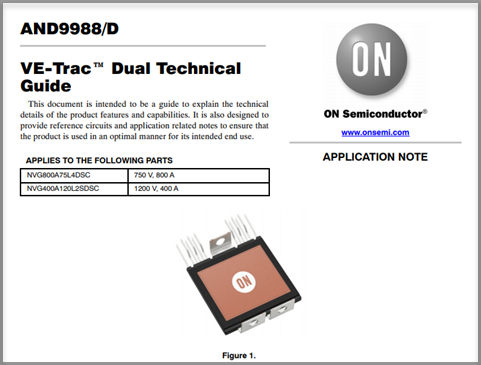

VE-Trac Dual Technical Guide

A guide to explain the technical details of the VE-Trac Dual product features and capabilities. It is also designed to provide reference circuits and application related notes to ensure...

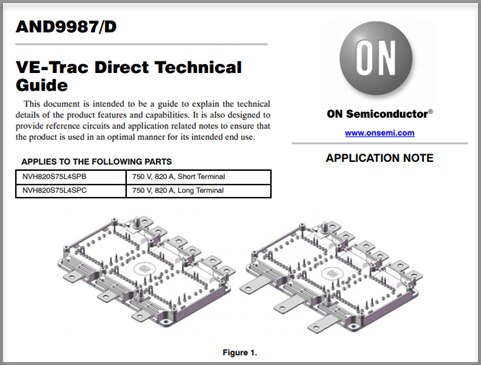

VE-Trac Direct Technical Guide

A guide to explain the technical details of the VE-Trac Direct product features and capabilities. It is also designed to provide reference circuits and application related notes to ensure...
