AF0130 Power Tree

AF0130

The power tree is designed to support three different input voltages starting from 5V, 18V and 48V while enabling flexible powering through LDOs, Buck Converters and PMIC. It also provides power for onsemi's local ISP and remote ISP via the PMIC, ensuring optimized performance across diverse configurations.

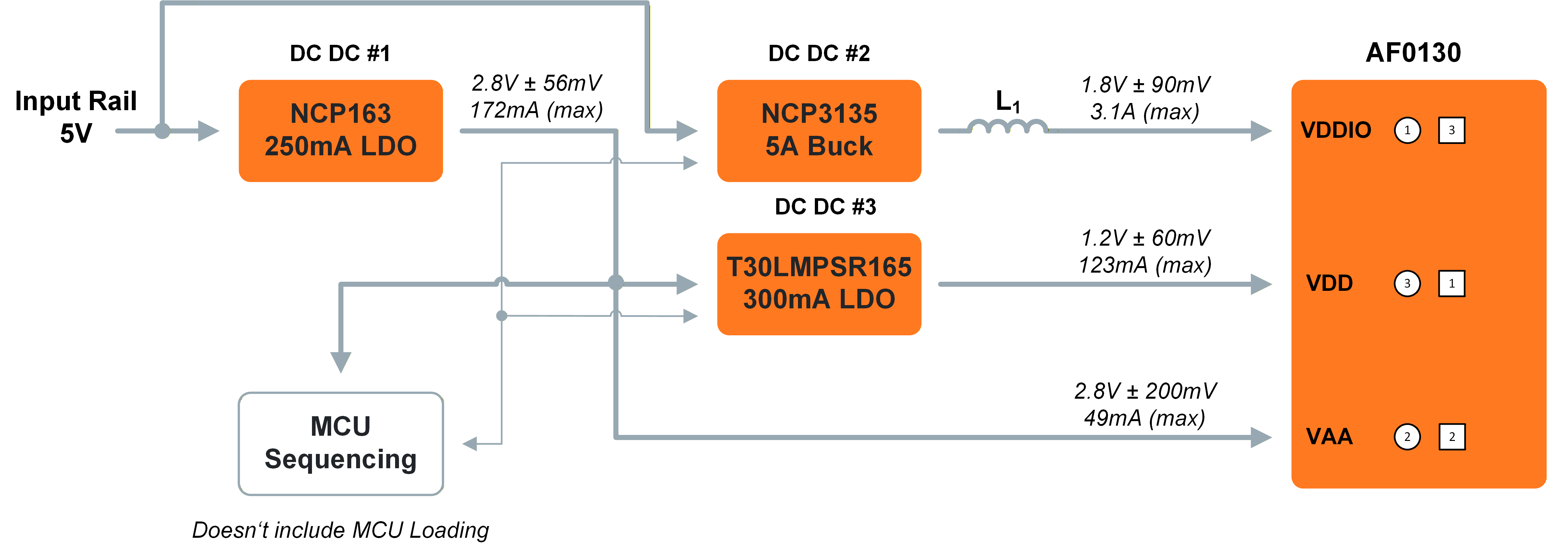

5V VIN Block Diagram

部品番号

内容

DCDC #

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP163AFCS280T2G)

DCDC #1

NCP3135

2.9V to 5.5V, 5A Integrated Synchronous DC-DC Step Down Converter (OPN: NCP3135MNTXG)

DCDC #2

T30LMPSR165

LDO Regulator, 300 mA, Drop Out Voltage (26mV), Ultra-Fast Transient response (OPN: T30LMPSR165CFCT120T2G)

DCDC #3

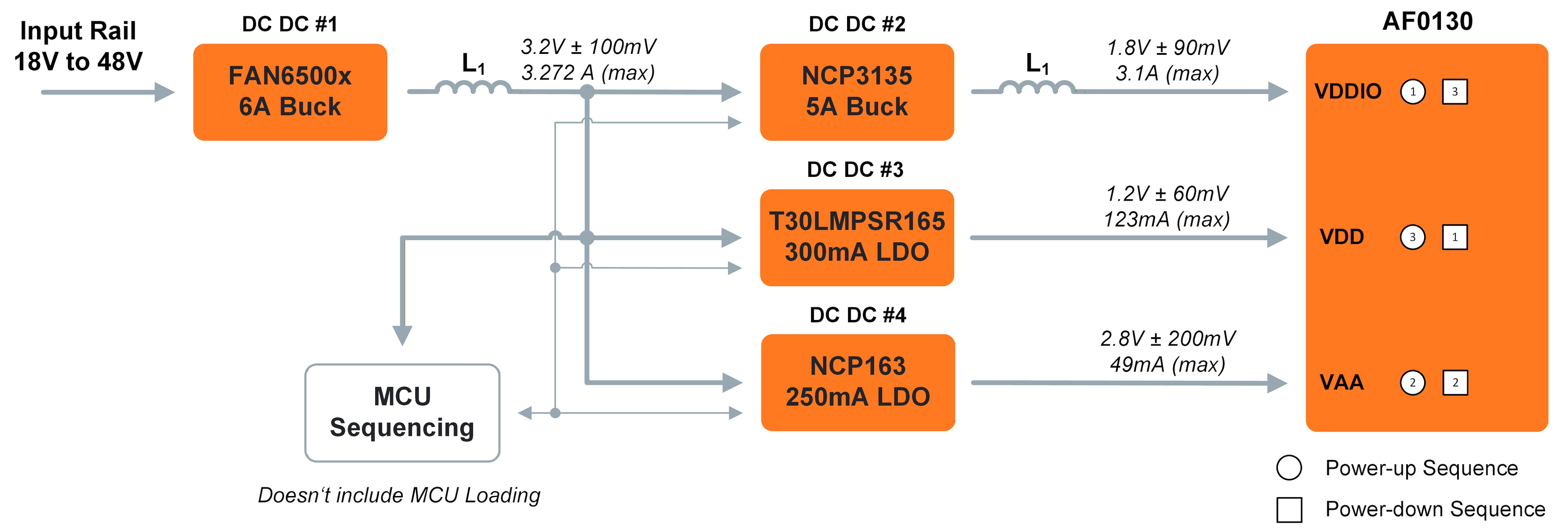

18V-48V VIN Block Diagram
