AR2020 Power Tree

AR2020

The power tree is designed to support three different input voltages starting from 5V, 18V and 48V while enabling flexible powering through LDOs, Buck Converters and PMIC. It also provides power for onsemi's local ISP and remote ISP via the PMIC, ensuring optimized performance across diverse configurations.

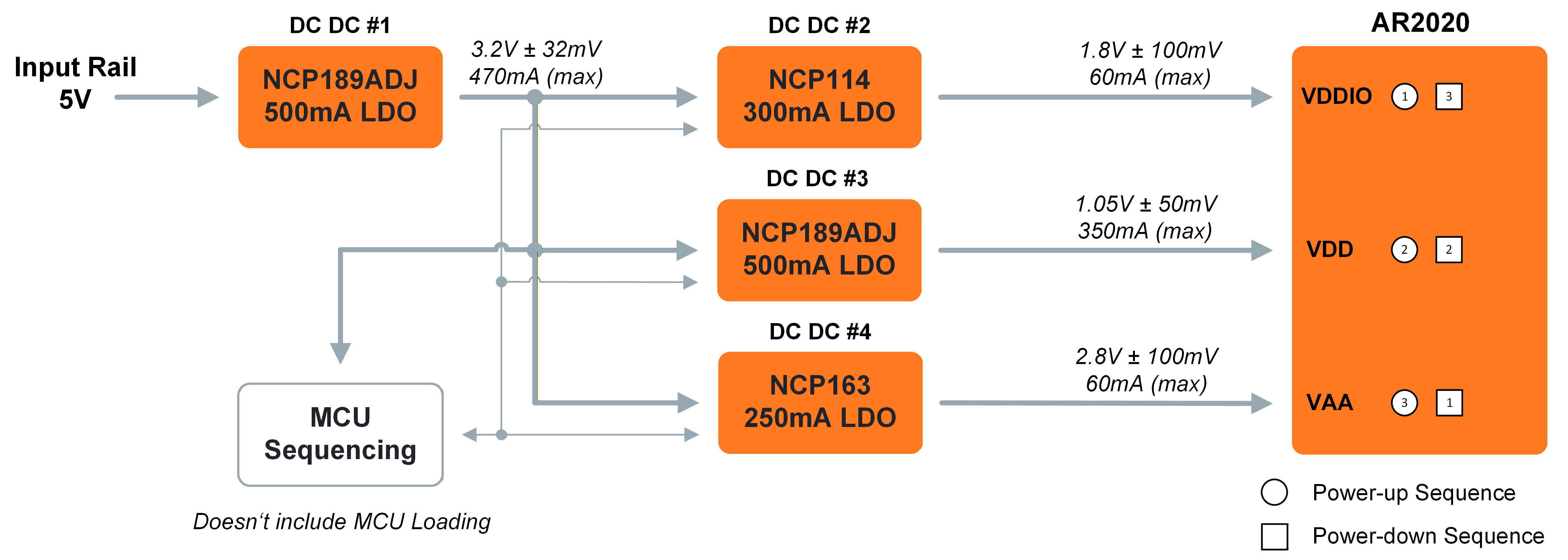

5V VIN Block Diagram

部品番号

内容

ツール

NCP189

LDO Regulator, 450 mA, Ultra-High PSRR, Ultra-Low Noise

Available Soon

NCP114

LDO Regulator, 300 mA, High PSRR

Available Soon

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise

Available Soon

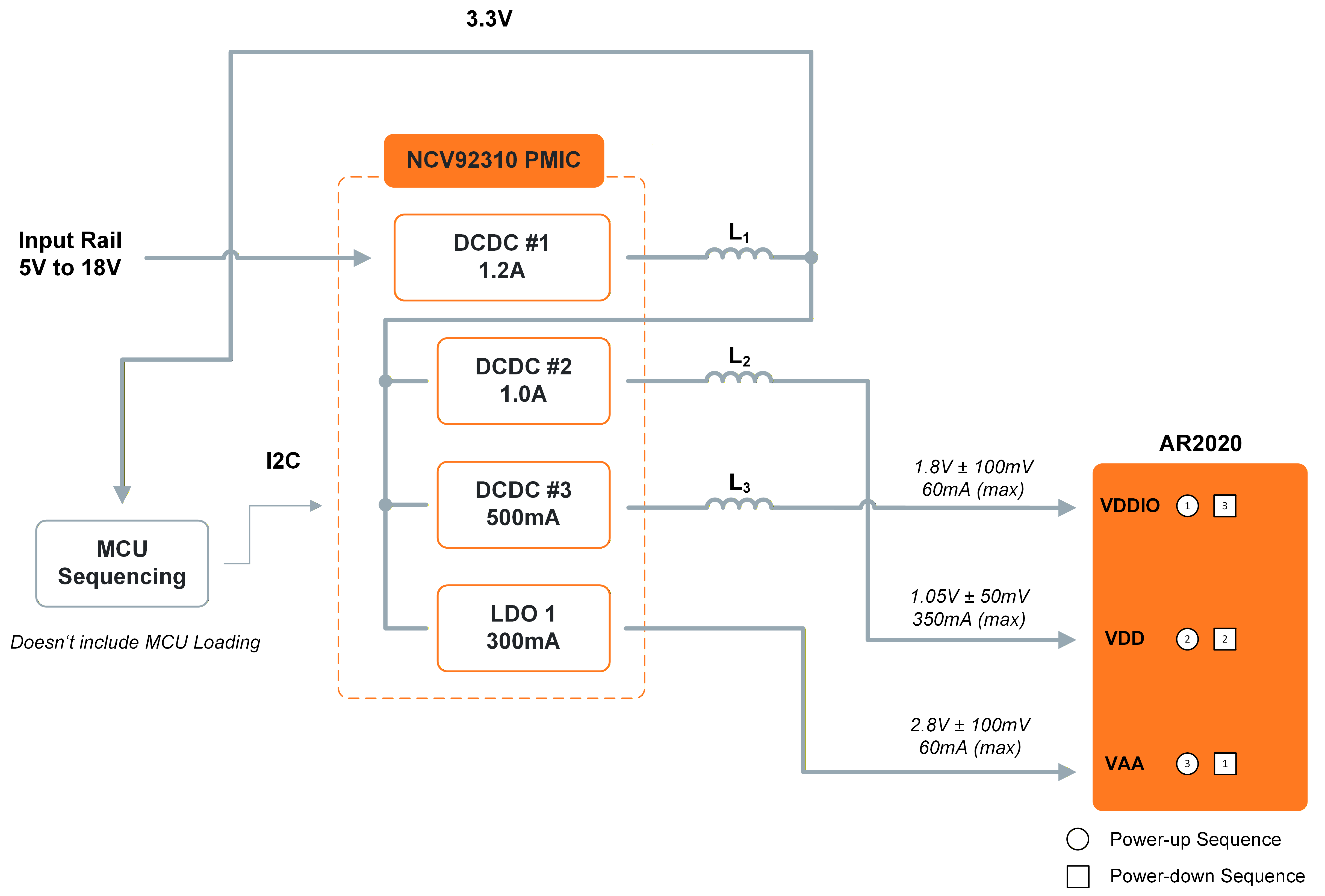

5V-18V VIN Block Diagram

部品番号

内容

ツール

NCV92310

Highly integrated PMIC optimized for power over coax sensor modules.

Available Soon

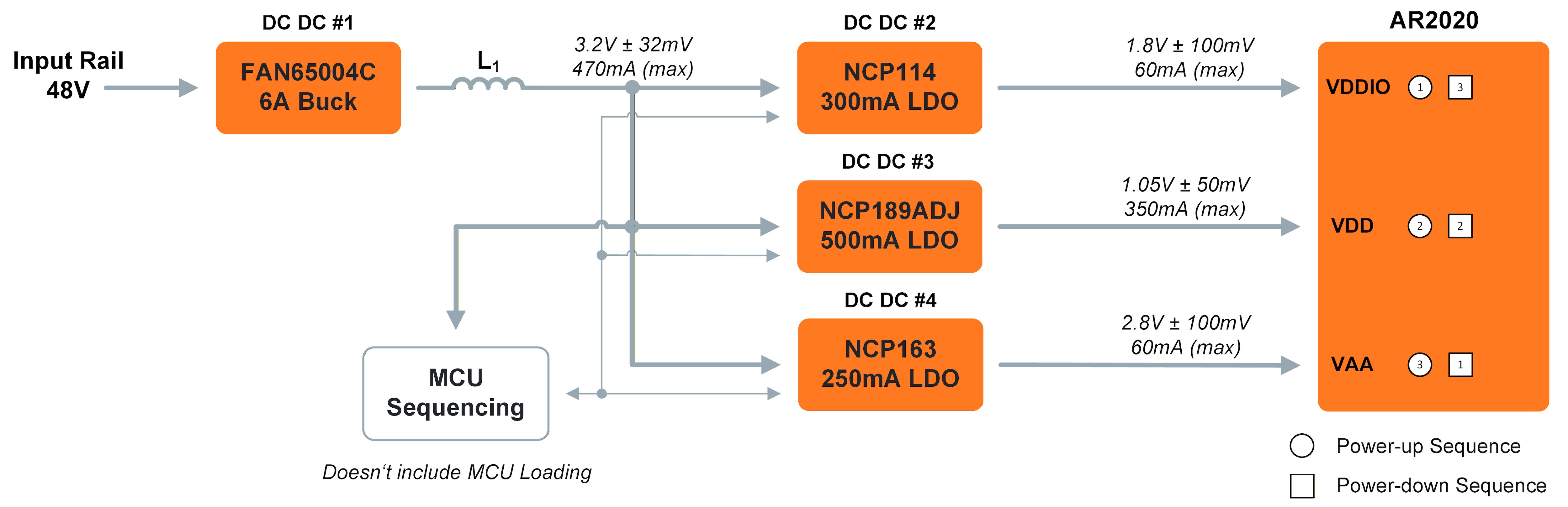

48V VIN Block Diagram

部品番号

内容

ツール

FAN65004C

Synchronous PWM Buck Regulator, High Performance, Voltage Mode, 65 V, 6 A

Available Soon

NCP189

LDO Regulator, 450 mA, Ultra-High PSRR, Ultra-Low Noise

Available Soon

NCP114

LDO Regulator, 300 mA, High PSRR

Available Soon

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise

Available Soon

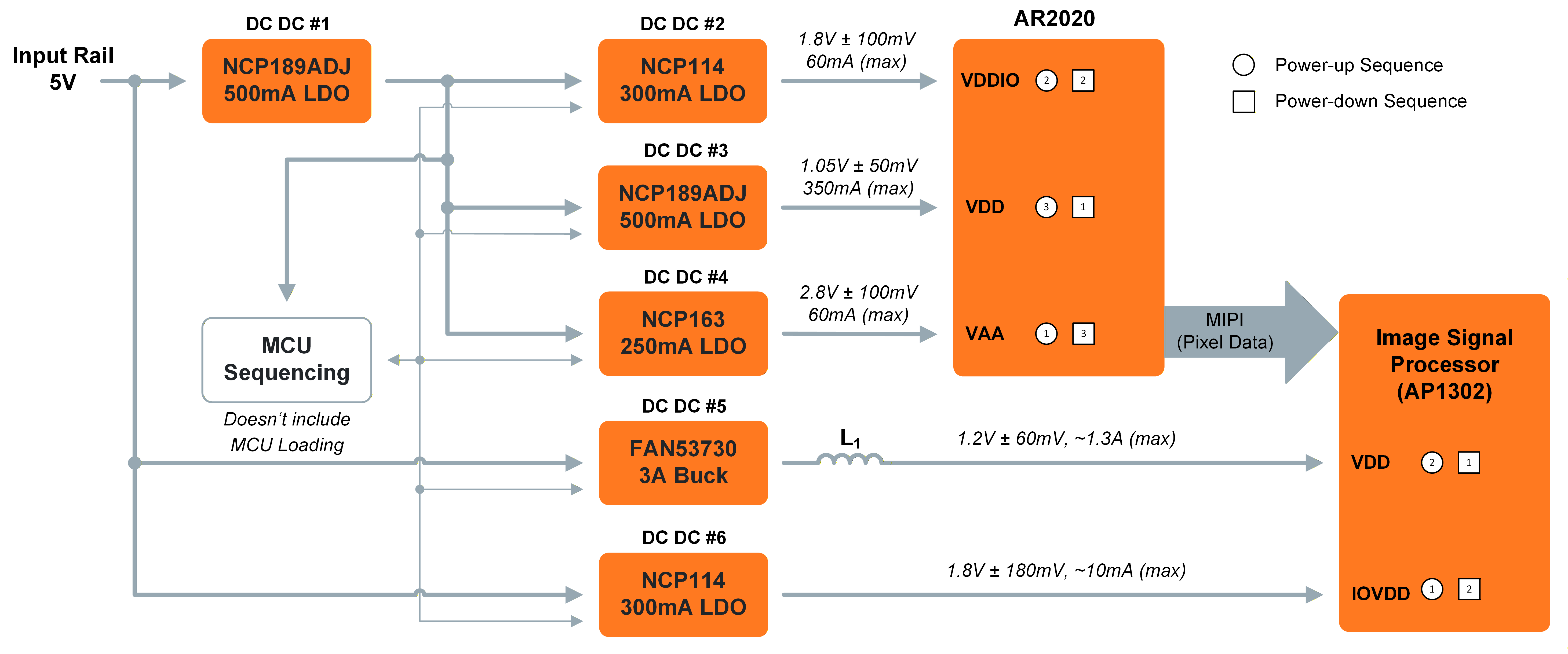

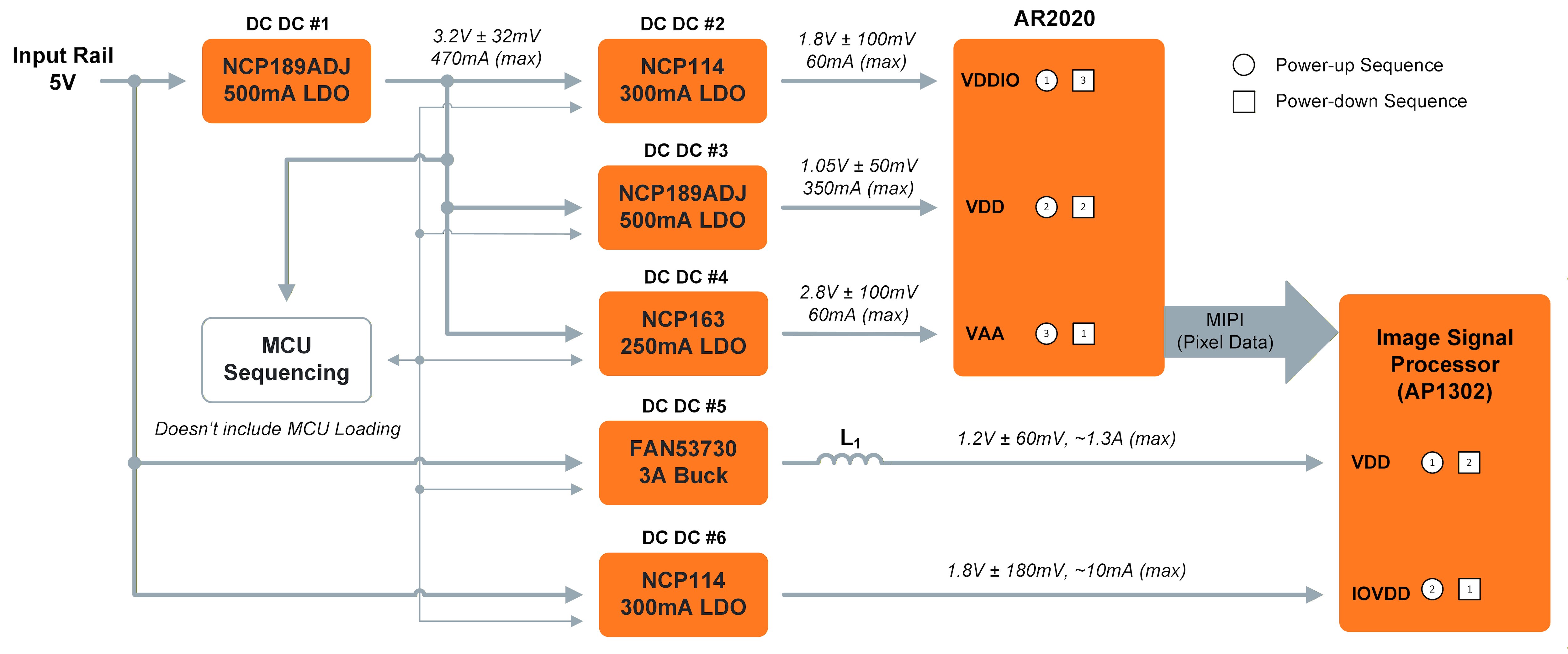

5V VIN Local ISP Block Diagram

部品番号

内容

ツール

FAN53730

3.0A, 2.7MHz, Digitally Programmable COT Buck Regulator

Available Soon

NCP114

LDO Regulator, 300 mA, High PSRR

Available Soon

NCP189

LDO Regulator, 450 mA, Ultra-High PSRR, Ultra-Low Noise

Available Soon

NCP114

LDO Regulator, 300 mA, High PSRR

Available Soon

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise

Available Soon

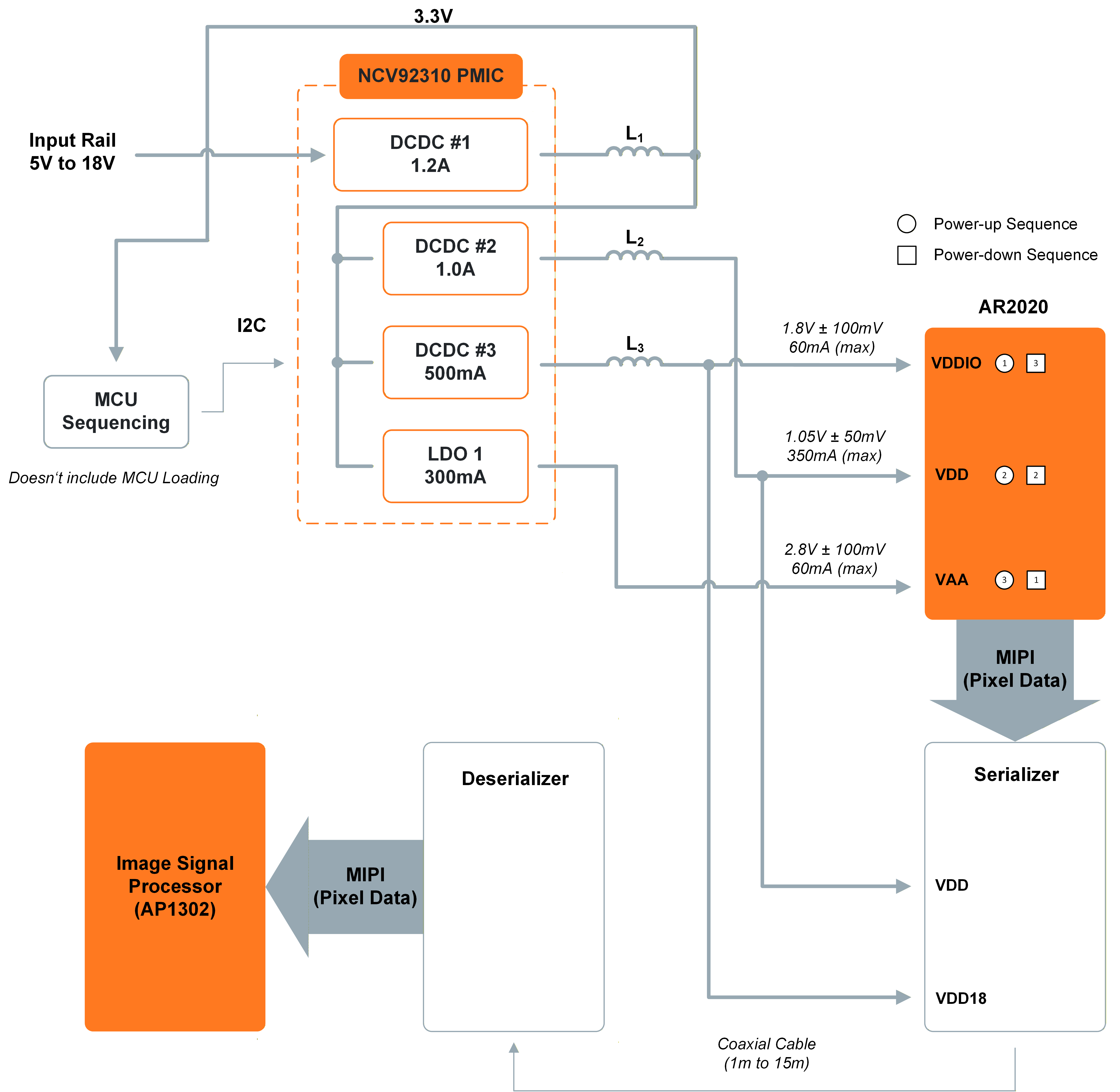

18V VIN Remote ISP Block Diagram

部品番号

内容

ツール

NCV92310

Highly integrated PMIC optimized for power over coax sensor modules.

Available Soon
