Portable Camera Systems for Mobile Image Capture
Portable camera solutions enable compact action, trail, body and wearable designs with advanced image sensing, low-power battery management, USB-C charging and wireless connectivity.

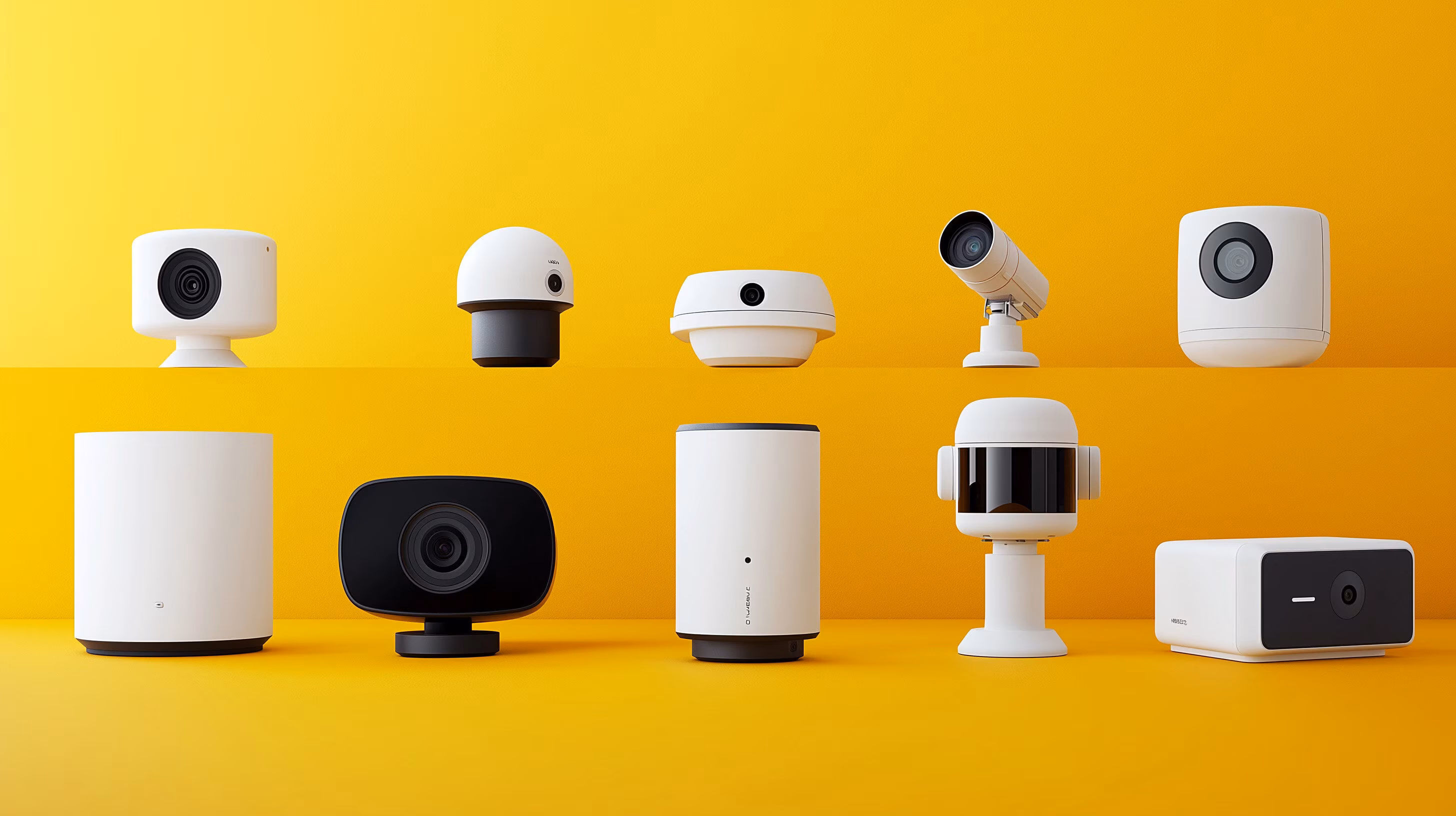

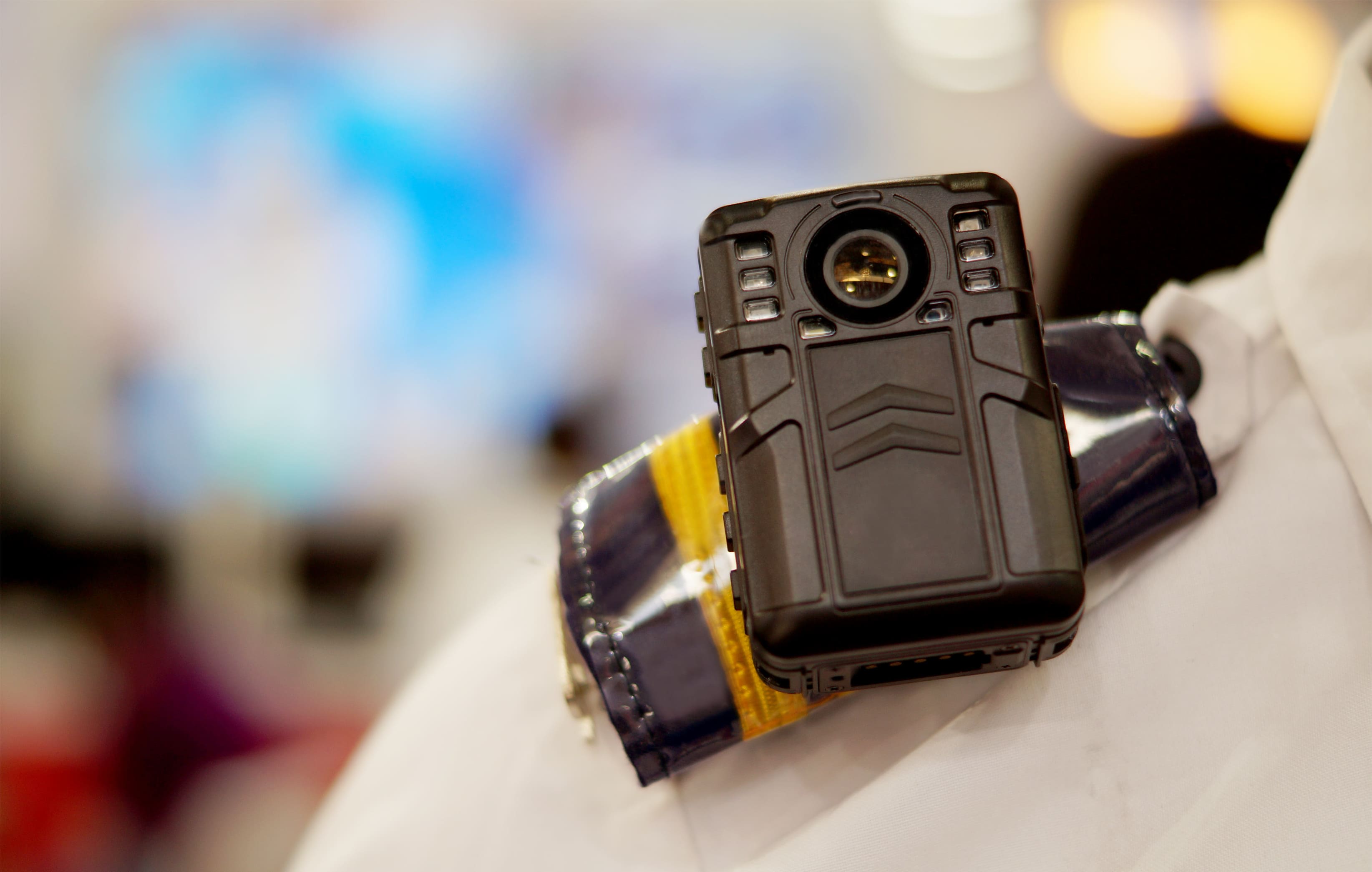

Portable cameras are compact, battery-powered imaging systems used in trail cameras, action cameras, body cameras, wearable cameras, and dashboard cameras. A typical portable camera design integrates an image sensor, ISP, MCU, battery charger, battery management, PMIC, DC-DC converters, LDOs, USB-C interface, wireless communication, memory, HMI, LED/flash drivers, MOSFETs, analog switches, and ESD/EMI protection. These systems are optimized for high-resolution video, low-light capture, motion-triggered recording, wireless control, USB-C charging/data transfer, and long battery life in mobile and rugged environments.
onsemi portable camera solution focuses on low-power image sensing, efficient power architecture, and reliable connectivity. The Hyperlux LP and Hyperlux LH image sensor families support features such as enhanced dynamic range, HDR options, NIR/low-light sensitivity, and Wake-on-Motion, allowing the camera to stay in a low-power pre-detect mode and wake only when motion is detected. This is especially valuable for battery-powered trail cameras, smart body cameras, action cameras, dash cameras, wearable cameras, and portable security cameras, where runtime, fast response, and image quality are key design priorities.
For engineers and product designers, the solution includes key components such as USB-C controllers and protection ICs, Bluetooth wireless MCUs like RSL15/RSL10, PMICs, buck converters, buck-boost regulators, low-noise LDOs, battery protection MOSFETs, and EEPROM memory. Together, these building blocks improve power efficiency, compact design, system protection, connectivity, and field reliability, making portable cameras suitable for consumer, industrial, automotive, outdoor monitoring, and public safety applications.
Discover how Wake-on-Motion image sensing helps security cameras lower power consumption, extend battery life, and maintain reliable image quality.
Read More
Learn strategies for selecting LDO, DC-DC, and PMIC components to meet demanding performance requirements while streamlining costs and development time.
Watch Webinar Download Tutorial
Learn how low-power image sensors enable smarter video locks with reliable visual verification, compact design, and longer battery operation.
Read More
Design Resources
Tools and resources for your evaluation process.
Utilize our PRT+ tool to identify the ideal product for you.
Explore tailored components and insights for your application.
Buy and validate the performance of chosen components.
The key parameters include resolution, pixel size, dynamic range, sensitivity, signal-to-noise ratio (SNR), power consumption, and frame rate. Portable cameras often operate in challenging lighting conditions and on battery power, making high sensitivity, low noise, and power efficiency critical design requirements.
HDR enables the camera to capture details in both bright and dark regions of a scene simultaneously. This is particularly important for body-worn cameras, mobile surveillance systems, and portable inspection devices that frequently encounter high-contrast environments such as outdoor daylight, vehicle headlights, or indoor-to-outdoor transitions.
Frame rate requirements vary by application:
Higher frame rates improve motion capture and analytical accuracy but increase data throughput and power requirements.
Higher resolution improves image detail and digital zoom capability but increases:
The optimal resolution depends on the application's field of view, analytics requirements, and battery constraints.
Techniques include:
These features help preserve scene details across varying illumination levels.
Larger pixels collect more photons during exposure, improving sensitivity and reducing temporal noise. This results in better image quality under low-light conditions, allowing portable cameras to operate effectively without requiring excessive gain that can degrade image fidelity.
